Shop LEGRAND

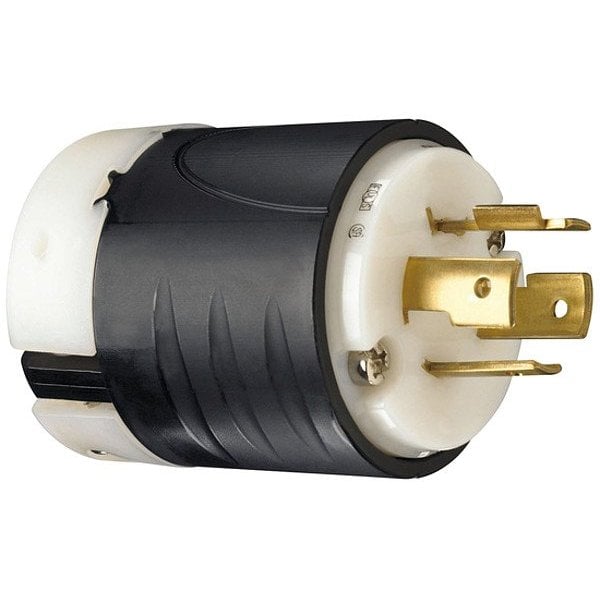

Locking Plug, 20 A, Black, Nylon

  • Mfr # L1420P

  • Zoro # G122784960

product price:
$
51.15
/ea

Key Features

Wire Rope Length
2.57 in
Maximum Operating Temperature
75 Degrees C
Shrouded
No
Housing Color
Black
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L1420P
Zoro #
G122784960
UPC #
785007142044
Country of Origin
Mexico

Dimensions

Wire Rope Length
2.57 in
For Minimum Cable Diameter
0.225 in
For Maximum Cable Diameter
1.15 in
Overall Length
2.57 in

Details

Maximum Operating Temperature
75 Degrees C
Shrouded
No
Housing Color
Black
Wire Connection Type
Screw Terminals
NEMA Plug Configuration
L14-20P
Number of Blades
3
Minimum Operating Temperature
-40 Degrees C
Grounding
Grounded
Market
Industrial
Resistance Properties
Corrosion Resistant, Impact Resistant
Grade
General Use
Number of Poles
2
Phase
Three
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Power and Ground Indicating Light
No
Current Rating
20 A
Standards
UL 498
Item
Locking Plug
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, Impact- and Corrosion-Resistant Durable Nylon 6 Shell Material, Industrial-Strength, Brass Alloy Plug Blades and Connector Contacts Resist Heat Rise, Provide Excellent Conductivity, Integral Flexible Rubber Cord Grommet Conforms to and Seals Around SO Cord to Provide Protection from Oils, Water, or Chips Entering Wiring Chamber, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Quick-Thread Assembly Screws and Cord-Grip Screws Come Backed-Out, Ready-to-Wire, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Scallop Shell Design Provides Non-Slip Gripping Surface for Insertion and Withdrawal, Visible Stamped NEMA Configuration and Device Rating
Midget Locking
No
For Location
Indoor
Series
TURNLOK(R)
Voltage Rating
125/250V AC

Description

Locking Plug, Current Rating 20 A, Housing Color Black, Housing Material Nylon, NEMA Plug Configuration L14-20P, Number of Blades 3, Number of Poles 2, Phase Three, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grade General Use, Grounding Grounded, Horsepower Rating Not Applicable, IP Rating Not Applicable
