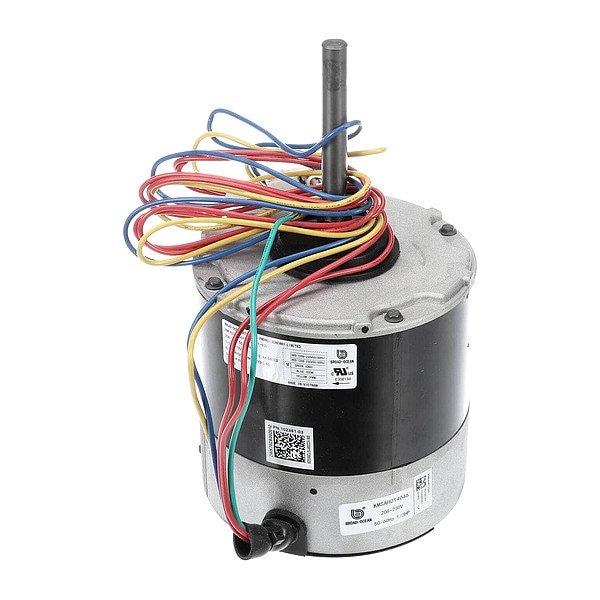

HVAC Motor, 208-230V AC, Single, 1/3 hp
Mfr # 16V46
Zoro # G922438940
product price:Â
$
485.99
/ea
Free Shipping & Returns
Key Features
Frame Size
48
Frequency
60/50 Hz
Body Diameter
5.6 in
Shaft Length
3 1/2 in
Sub Application
Condenser Fan
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16V46
- Zoro #
- G922438940
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Frame Size
- 48
- Body Diameter
- 5.6 in
- Shaft Length
- 3 1/2 in
- Shaft Diameter
- 1/2 in
Details
- Frequency
- 60/50 Hz
- Sub Application
- Condenser Fan
- Usable @ 208V
- Usable at 208V
- Product Type
- Condenser Fan Motor
- Motor Design
- ECM
- Compatible Brand
- Lennox
- Nameplate RPM @ 50 Hz
- 250 to 1,250 RPM
- Phase
- Single
- Nameplate Voltage @ 50 Hz
- 208-230V AC
- Compatible Manufacturer Part Number
- LCH036H4-01, LCH036H4-02, LCH036H4-03, LCH036H4-04, LCH036U4-01, LCH048H4-01, LCH048H4-02, LCH048H4-03, LCH048H4-04, LCH048U4-01, LCH060H4-01, LCH060H4-02, LCH060H4-03, LCH060H4-04, LCH060U4-01
- Application
- Condenser Fan
- Motor Shaft Rotation
- CCWLE
- Nameplate Horsepower @ 50 Hz
- 1/3 hp
- Bearing Type
- Ball
- Item
- HVAC Motor
Description
HVAC Motor, Single Phase, Motor Design ECM, 1/3 hp HP, Nameplate RPM 250 to 1,250 RPM, Voltage 208-230V AC, Full Load Amps Not Applicable, 48 Frame, Usable @ 208V Usable at 208V, 60/50 Hz Hz, Motor Thermal Protection Not Applicable, Motor Shaft Rotation CCWLE, Motor Mounting Type Belly Band
Restrictions
This item has been restricted from sale in the following states:
CA
