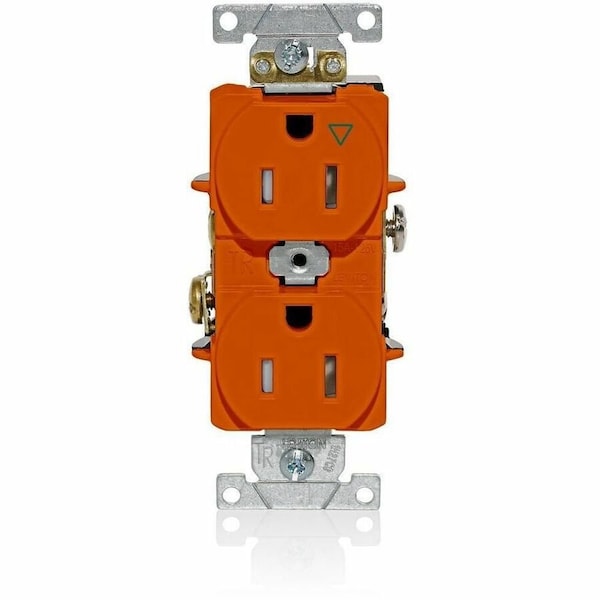

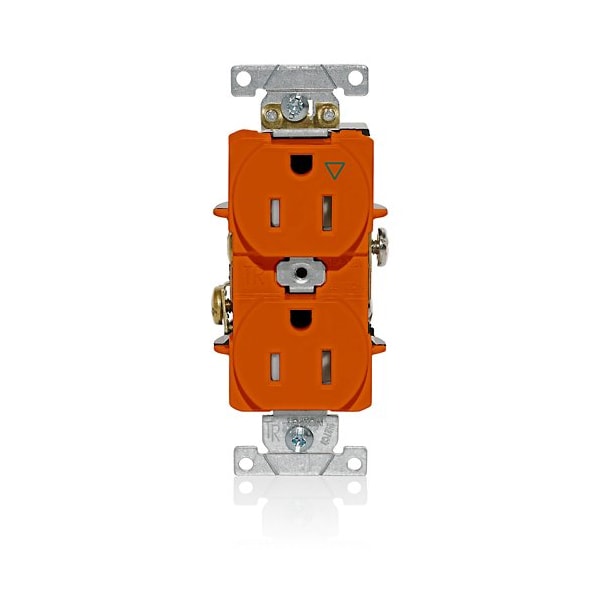

Duplex Receptacle Outlet, 15A, Orange, 125V
- Mfr # T5262-IG
- Zoro # G322982227
product price:Â
$
23.19
/ea
Key Features
Contact Material
Phosphor Bronze
Features
Smooth Face
Voltage Rating
125V AC
Minimum Operating Temperature
-40 Degrees C
Overall Depth
1.2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- T5262-IG
- Zoro #
- G322982227
- UPC #
- 078477894774
- Country of Origin
- Mexico
Dimensions
- Overall Depth
- 1.2 in
- Face Plate Width
- 1.4 in
- Minimum Wire Size
- 14 AWG
- Face Plate Height
- 2.8 in
- Maximum Wire Size
- 10 AWG
- Mount Hole Center-to-Center Height
- 3.3 in
- Fits Chest Size
- Smooth Face
Description
Isolated Ground Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Orange, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
