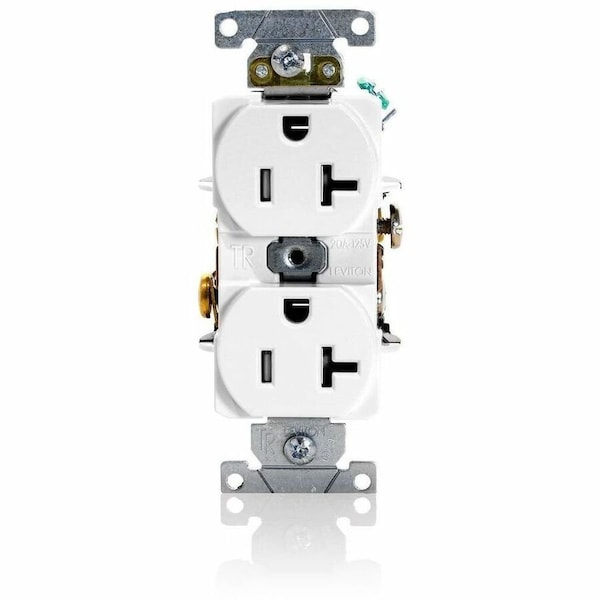

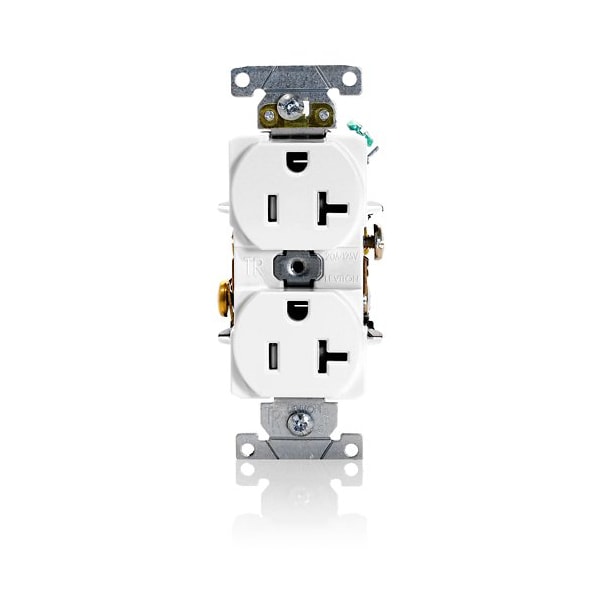

Duplex Receptacle Outlet, 20A, White, 125V
Mfr # T5362-W
Zoro # G322982272
product price:Â
$
26.45
/ea
Key Features
Connection Orientation
Straight
Number of Outlets
2
Maximum Operating Temperature
75 Degrees C
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- T5362-W
- Zoro #
- G322982272
- UPC #
- 078477675281
- Country of Origin
- Mexico
Dimensions
- Face Plate Width
- 1.4 in
- Face Plate Height
- 2.8 in
- Overall Depth
- 1.1 in
- Minimum Wire Size
- 14 AWG
- Maximum Wire Size
- 10 AWG
- Mount Hole Center-to-Center Height
- 3.3 in
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
