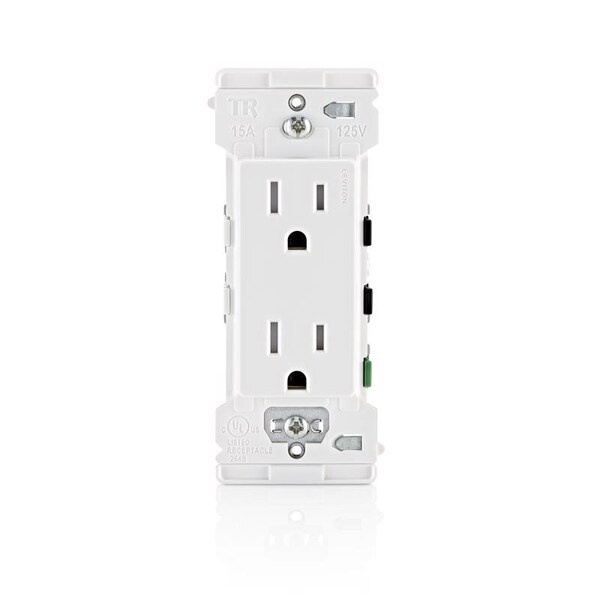

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Self-Grounded
Mfr # E5325-0SW
Zoro # G410913959
Key Features
Specifications
Product Information
- MFR #
- E5325-0SW
- Zoro #
- G410913959
- UPC #
- 78477332535
- Country of Origin
- China
Details
- Item
- Duplex Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-15R
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Spring Clamp Terminals
- Grounding
- Self-Grounded
- Housing Color
- White
- Standards
- CSA C22.2 No. 42 File E152105, NOM, UL 498 File E13399
- Resistance Properties
- Tamper Resistant
- Flange Type
- Non-Flanged
Description
Leviton’s Decora Edge wiring devices provide the classic appearance and superior performance of Decora devices in a new, easier-to-install, safer design. The line consists of Single Pole and 3-Way Switches and a Tamper-Resistant 15-amp Duplex Receptacle. Innovative installation features such as color-coded lever terminals (including the ground terminal) for faster, efficient wiring, a larger strap with a unique tongue and groove alignment feature for quicker trim out on multi-gang installations, and no exposed metal parts for safety, make Decora Edge ideal for new home construction and MDU projects as well as retrofit applications. Installers using Decora Edge will experience an installation process as unique as it is practical. The lever termination feature assures a positive connection has been made. This patent pending design also has a snap feature with an audible “click” so installers can be confident with every termination
- • Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- • No exposed metal parts for enhanced safety; eliminates need for electrical tape
- • Only residential device on the market with a quick termination ground wire
- • Wire openings prevent wire insulation from being inserted into the terminals
- • Devices coordinate seamlessly with other Decora devices
- • Receptacle allows for split circuit applications
