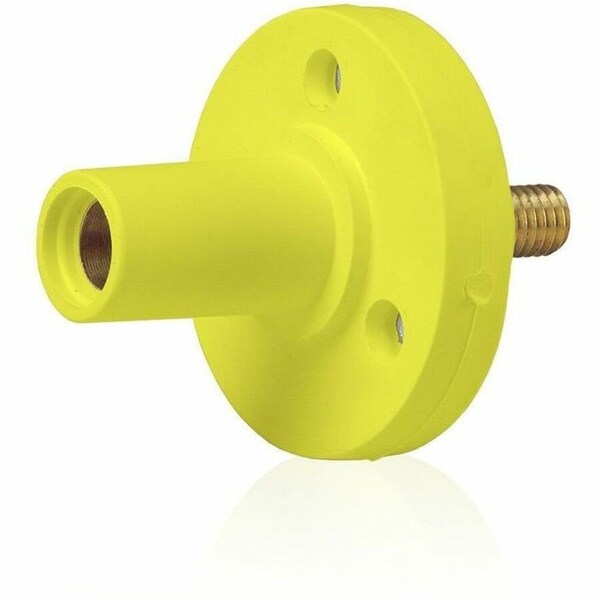

Female Panel Mount Receptacle
Mfr # 15R22-UY
Zoro # G315867012
product price:Â $29.99
/eaKey Features
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
Standards
CSA C22.2 No 1691, RoHS, UL 1691
Overall Length
2.04 in
Stud Thread Size
5/16"-18
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 15R22-UY
- Zoro #
- G315867012
- UPC #
- 078477711903
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 2.04 in
- Stud Thread Size
- 5/16"-18
- Maximum Wire Size
- 2 AWG
- Flange Diameter
- 1.9 in
- Minimum Wire Size
- 8 AWG
- Flange Width
- 0.38 in
Details
- Item
- Single Pole Receptacle
- Current Rating
- 150 A
- Voltage Rating
- 600V AC, 600V DC
- Standards
- CSA C22.2 No 1691, RoHS, UL 1691
- Contact Material
- Brass
- Housing Material
- Santoprene TPV
- Terminal Connection Type
- Threaded Stud
- Gender
- Female
- Mounting Style
- Threaded Mounting
- NEMA Enclosure Rating
- 3R
- For Location
- Indoor, Outdoor
- Flange Shape
- Round
- Housing Color
- Yellow
- Connection Orientation
- Straight
- Phase
- Single
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 150 A, Gender Female, Housing Color Yellow, Housing Material Santoprene TPV, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter 1.9 in, Flange Shape Round, Flange Width 0.38 in, NEMA Enclosure Rating 3R, Standards CSA C22.2 No 1691, RoHS, UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
