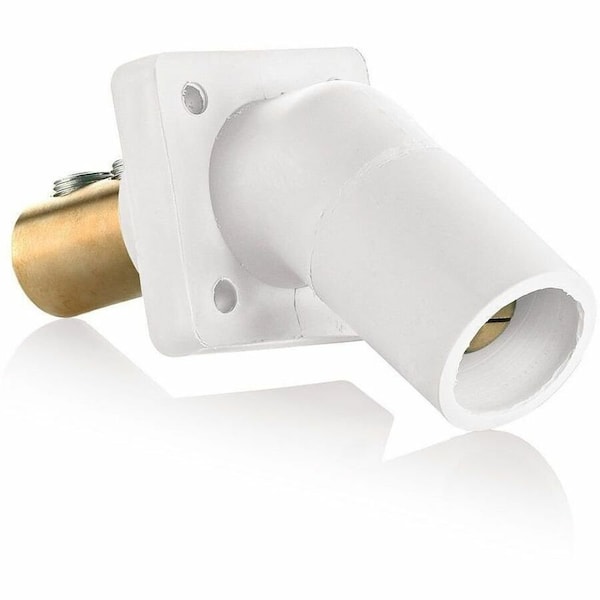

Male Receptacle
Mfr # 16R27-UW
Zoro # G315866985
product price: $68.29
/eaKey Features
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
UL 1691
Phase
Single
Flange Height
2.29 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R27-UW
Zoro #
G315866985
UPC #
078477718056
Country of Origin
Mexico
Dimensions
Flange Height
2.29 in
Flange Width
0.5 in
Minimum Wire Size
2/0 AWG
Overall Width
2.29 in
Overall Length
3.73 in
Maximum Wire Size
4/0 AWG
Details
Item
Single Pole Receptacle
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
UL 1691
Phase
Single
Flange Shape
Square
For Location
Indoor, Outdoor
Connection Orientation
Angled
Terminal Connection Type
Double Set Screw
NEMA Enclosure Rating
3R
Contact Material
Brass
End Type
Taper Nose
Housing Material
Santoprene TPV
Housing Color
White
Gender
Male
Mounting Style
Threaded Mounting
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.29 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Double Set Screw
