Shop LEVITON

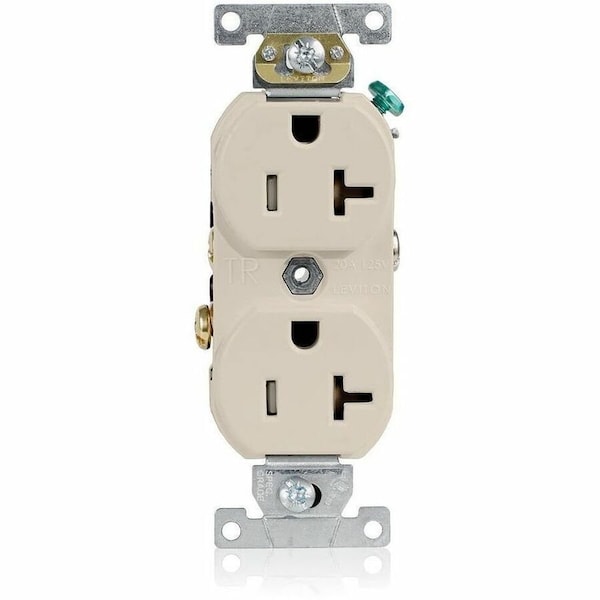

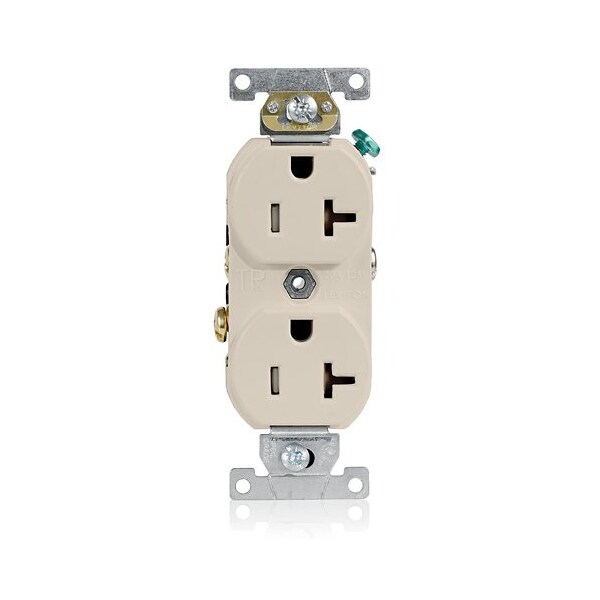

Plugs&Rcptcls, 20A, 125VAC, Almnd, Thrmplstc

  • Mfr # TCR20-T

  • Zoro # G122586397

product price:
$
8.15
/ea

Key Features

Polarized
Yes
Voltage Rating
125V AC
Surge Protection
No
Wire Connection Type
Screw Terminals
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCR20-T
Zoro #
G122586397
UPC #
78477655368
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Polarized
Yes
Voltage Rating
125V AC
Surge Protection
No
Wire Connection Type
Screw Terminals
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
60 Degrees C
Housing Color
Light Almond
Receptacle Type
Duplex
Minimum Operating Temperature
-40 Degrees C
For Environment
Food and Beverage, Oily/Greasy
Number of Wires
3
Market
Commercial
Standards
CSA, FULS Marking, UL
Grade
General Use
Connection Orientation
Straight
AFCI
No
Phase
Single
Shrouded
No
Number of Wall Plates Included
0
Current Rating
20 A
UL 94 Flammability Rating
V-2
Flange Type
Non-Flanged
Grounding
Grounded
NEMA Receptacle Configuration
5-20R
Resistance Properties
Tamper Resistant
Features
Smooth Face
Mount Type
Flush
Contact Material
Brass
Item
Plugs and Receptacles
Wiring Method
Side
GFCI
No
Number of Gangs
1
Horsepower Rating
1 hp
Number of Poles
2
Housing Material
Thermoplastic
IP Rating
Not Rated
Number of Outlets
2

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
