Shop LEVITON

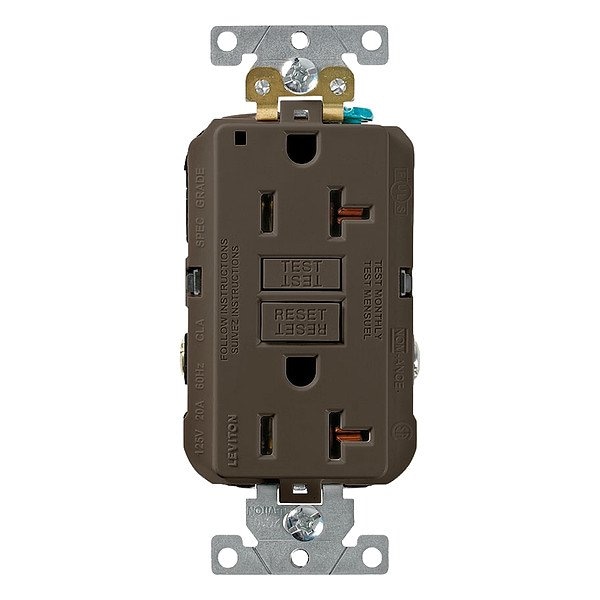

Plugs&Rcptcls, 20A, 125VAC, Brn, Polycarb

  • Mfr # G5362

  • Zoro # G422587186

product price:
$
43.59
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Shrouded
No
Polarized
Yes
Market
Industrial
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G5362
Zoro #
G422587186
UPC #
78477905975
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Face Plate Height
2.8 in
Face Plate Width
1.7 in

Details

NEMA Receptacle Configuration
5-20R
Shrouded
No
Polarized
Yes
Market
Industrial
Grounding
Grounded
Contact Material
Brass
Housing Material
Polycarbonate
UL 94 Flammability Rating
V-0
Cover Type
No Cover
GFCI
Yes
Voltage Rating
125V AC
Mount Type
Flush
Maximum Operating Temperature
66 Degrees C
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
For Environment
Food and Beverage, Oily/Greasy
Flange Type
Non-Flanged
Phase
Single
Horsepower Rating
1 hp
Number of Poles
2
Wiring Method
Back/Side
Self Testing
Yes
Number of Gangs
1
Housing Color
Brown
AFCI
No
Number of Outlets
2
Item
Plugs and Receptacles
Maximum Surge Current
10 kA
Number of Wires
3
Standards
CSA, FULS Marking, UL
Grade
General Use
Minimum Operating Temperature
-35 Degrees C
Current Rating
20 A
IP Rating
Not Rated
Features
Self-Test Industrial Grade GFCI
Receptacle Type
Duplex
Wire Connection Type
Screw Terminals
Surge Protection
No
Number of Wall Plates Included
0

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
