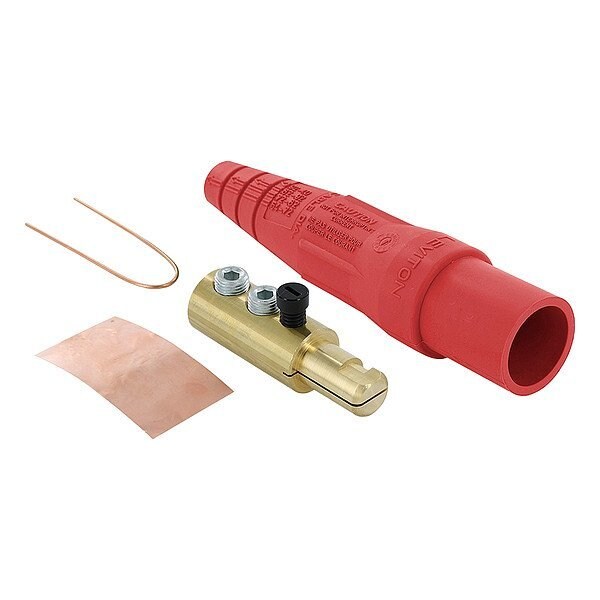

Single Pole Inline, 400 A, Male, Red
Mfr # 16D24-UR
Zoro # G622586873
product price:Â $40.59
/eaKey Features
Resistance Properties
Weather Resistant, Shatter and Crack Resistant
Standards
CSA, NEC, UL
Housing Color
Red
Housing Material
Thermoplastic Elastomer
For Location
Outdoor
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16D24-UR
- Zoro #
- G622586873
- UPC #
- 78477715178
- Country of Origin
- Mexico
Dimensions
- Overall Width
- 1.72 in
- Wire Rope Length
- 6.98 in
- Minimum Wire Size
- 2/0 AWG
- Maximum Wire Size
- 4/0 AWG
- Overall Length
- 6.98 in
Details
- Resistance Properties
- Weather Resistant, Shatter and Crack Resistant
- Item
- Single Pole Inline
- Standards
- CSA, NEC, UL
- Housing Color
- Red
- Housing Material
- Thermoplastic Elastomer
- For Location
- Outdoor
- End Type
- Taper Nose
- Contact Type
- Single Cam
- Gender
- Male
- Terminal Connection Type
- Double Set Screw
- Current Rating
- 400 A
- Contact Material
- Brass
- Voltage Rating
- 600V AC, 600V DC
- NEMA Enclosure Rating
- 3R
- Series
- 16
Description
Single Pole Inline, Contact Material Brass, Current Rating 400 A, Gender Male, Housing Color Red, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Terminal Connection Type Double Set Screw, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, NEMA Enclosure Rating 3R, Standards CSA, NEC, UL, Contact Type Single Cam, For Location Outdoor, Wire Rope Length 6.98 in, Overall Width 1.72 in
