  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

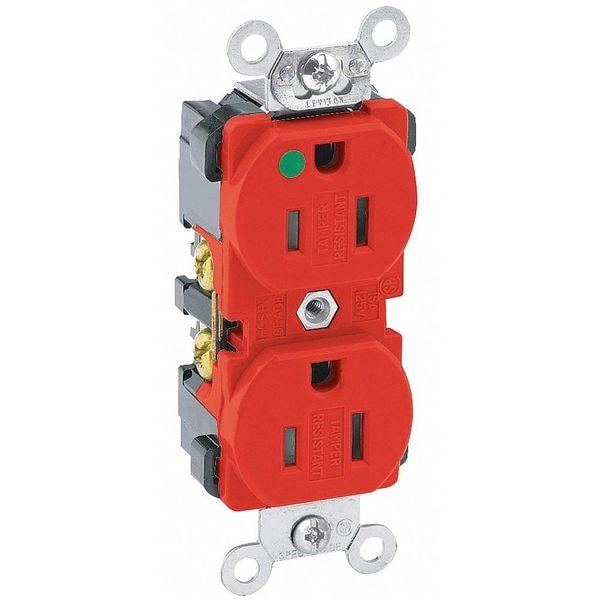

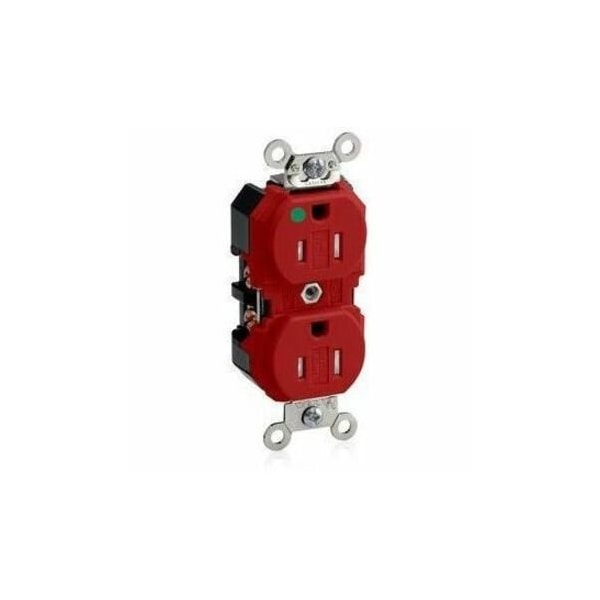

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red 8200-SGR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # 8200-SGR

  • Zoro # G604393291

product price: $16.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-SGR
Zoro #
G604393291
UPC #
07847705717
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.5 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Extra Heavy-Duty Hospital Grade
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Tamper Resistant
Yes
Includes Mounting Hardware
Yes
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
140 Degrees F
Contact Material
Nickel-Plated Phosphor Bronze
NEMA Enclosure Rating
Not Rated
GFCI
No
Connection Orientation
Straight
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Number of Outlets
2
Horsepower Rating
1/2 hp
Housing Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
