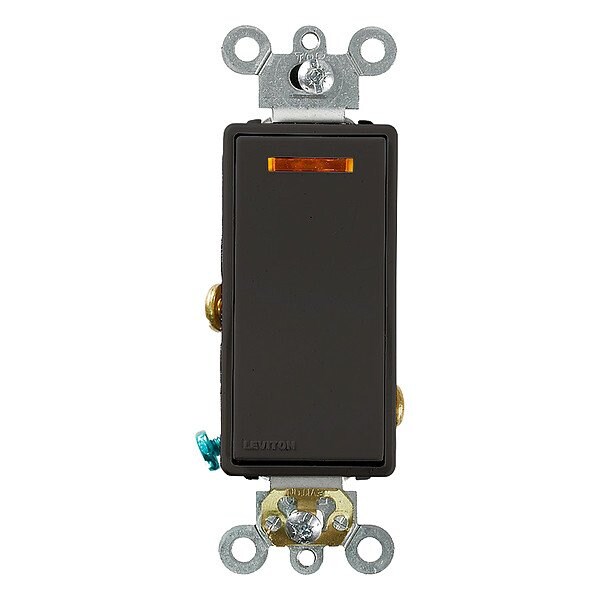

Wall Switch, 1 hp, Rocker, 20 A, Black
- Mfr # 5631-2E
- Zoro # G822587038
product price:Â
$
11.49
/ea
Key Features
Maximum Wire Size
10 AWG
Standards
ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20
Wiring Method
Back/Side
Housing Material
Thermoplastic Polyester
Strap Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5631-2E
- Zoro #
- G822587038
- UPC #
- 78477039779
- Country of Origin
- Mexico
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20
- Wiring Method
- Back/Side
- Housing Material
- Thermoplastic Polyester
- Strap Material
- Steel
- Minimum Operating Temperature
- -40 Degrees C
- Wire Connection Type
- Screw Terminals
- Grounding
- Grounded
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Market
- Commercial
- Color
- Black
- Switch Material
- Thermoplastic Polyester
- Switch Function
- Maintained
- Illuminated
- Yes
- Maximum Operating Temperature
- 65 Degrees C
- Horsepower Rating
- 1 hp
- Current Rating
- 20 A
- Voltage Rating
- 120V AC
- Switch Type
- Single Pole
- Item
- Wall Switch
- Number of Switches
- 1
Description
Wall Switch, Color Black, Current Rating 20 A, Illuminated Yes, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, Strap Material Steel, Switch Style Rocker, Wire Connection Type Screw Terminals
