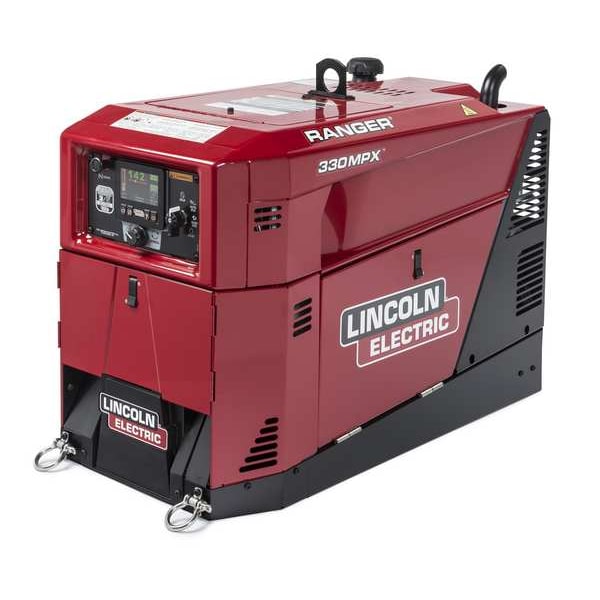

Lincoln Electric Engine-Driven Welder, Ranger 330MPX Series, Electric Start, 11,500 W Peak K3459-1 - main

Engine-Driven Welder, Ranger 330MPX Series, Electric Start, 11,500 W Peak

  • Mfr # K3459-1

  • Zoro # G102319038

product price:  $12,374.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Series
Ranger 330MPX
Start Type
Electric
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
11,500 W
Engine Brand
Kohler
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K3459-1
Zoro #
G102319038
UPC #
015082847290
Country of Origin
United States

Details

Item
Engine-Driven Welder
Series
Ranger 330MPX
Start Type
Electric
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
11,500 W
Engine Brand
Kohler
Stick Welding Output @ Duty Cycle
330 A @ 100%
Remote Connection Type
6-Pin (Lincoln), 7-Pin (Lincoln)
TIG Welding Maximum Output Current
300 A
TIG Arc Start Feature
Lift Arc Start
Stick Welding Maximum Output Current
330 A
Circuit Breaker
Yes
Engine Model
Kohler CH740
Fuel Tank Capacity
11 gal
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Polarity
DC
Welding Mode
CC/CV
Horsepower
25 hp
TIG Welding Minimum Output Current
10 A
Oil Capacity
2 qt
Phase
Single
Model
K3459-1
TIG Welding Output @ Duty Cycle
200 A @ 25 V, 60%, 280 A @ 32 V, 100% (DC)
Color
Red
Generator Fuel Type
Gasoline
Stick Welding Minimum Output Current
10 A
Enhanced Process
Pulsed TIG (GTAW-P)
Weight
446 lb
Generator Outlets
14-50R 120/240V Receptacle, 5-20R 120 Receptacle (4), 6-50R 240 Receptacle
Amperage TIG - Minimum
10 A
Rated Output @ Duty Cycle (TIG)
200 A @ 25 V, 60%, 280 A @ 32 V, 100% (DC)
Rated Output @ Duty Cycle (Stick)
330 A @ 100%
Amperage Stick - Maximum
330 A
Amperage Stick - Minimum
10 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welding Power Source Type
CC/CV
Amperage TIG - Maximum
300 A

Description

Engine-Driven Welder, Color Red, Generator Fuel Type Gasoline, Phase Single, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 330 A @ 100 Percent, TIG Welding Maximum Output Current 300 A, TIG Welding Minimum Output Current 10 A, TIG Welding Output @ Duty Cycle 200 A @ 25 V, 60 Percent, 280 A @ 32 V, 100 Percent (DC), Remote Connection Type 6-Pin (Lincoln), 7-Pin (Lincoln)
