Shop MILLER ELECTRIC

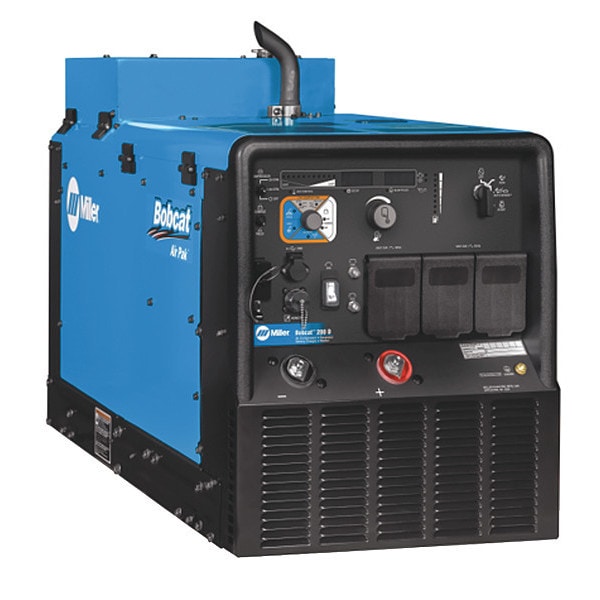

Engine-Driven Welder, Bobcat 200 Air Pak Diesel Series, Electric Start, 19 hp, Diesel, 8,000 W Peak

  • Mfr # 907760

  • Zoro # G8708023

product price:  $33,620.99
/ea
Additional $280.00 delivery surcharge applies per item.
See details

Key Features

Series
Bobcat 200 Air Pak Diesel
Start Type
Electric
Rated Output CC/DC
210A @ 25V, 100%
Amperage Range
30 to 210
Continuous Auxiliary Power
6,500 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907760
Zoro #
G8708023
UPC #
715959671187
Country of Origin
United States

Dimensions

Overall Width
20 in
Overall Depth
47.25 in
Overall Height
29.75 in
Width
20 in
Height
29 3/4 in
Depth
47 1/2 in
For Steel Thickness - Maximum
46,097 in
For Steel Thickness - Minimum
24 ga
For Stainless Steel Thickness - Minimum
26 ga

Details

Item
Engine-Driven Welder
Series
Bobcat 200 Air Pak Diesel
Start Type
Electric
Rated Output CC/DC
210A @ 25V, 100%
Amperage Range
30 to 210
Continuous Auxiliary Power
6,500 W
Peak Auxiliary Power
8,000 W
Engine Brand
Kubota
HP
19 hp
Fuel Type
Diesel
Standards
CSA Certified
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Farm, Maintenance, Mechanical Contractor, Ranch, Repair, Service Truck, Work
Engine Model
Kubota D722
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Remote Connection Type
10-Pin (Miller)
Stick Welding Output @ Duty Cycle
120 A @ 25 V, 100%, 140 A @ 26 V, 60%, 210 A @ 28 V, 20%
Horsepower
19 hp
MIG Welding Maximum Output Current
210 A
MIG Welding Minimum Output Current
30 A
Air Compressor Delivery
30 CFM
Generator Fuel Type
Diesel
Maximum Pressure - Air Compressor
175 psig
Color
Blue
Polarity
DC
Oil Capacity
3 3/8 qt
TIG Welding Maximum Output Current
210 A
Sound Level
67 dB @ 23 ft (Idle), 73 dB @ 23 ft (Weld)
Weight
618 lb
TIG Welding Output @ Duty Cycle
120 A @ 25 V, 100%, 140 A @ 26 V, 60%, 210 A @ 28 V, 20%
Stick Welding Maximum Output Current
210 A
TIG Arc Start Feature
Lift Arc Start
TIG Welding Minimum Output Current
30 A
MIG Welding Output @ Duty Cycle
120 A @ 20 V, 100%, 140 A @ 21 V, 60%, 210 A @ 25 V, 20%
Fuel Tank Capacity
7 gal
Circuit Breaker
Yes
Stick Welding Minimum Output Current
30 A
Welding Mode
CC/CV
Model
907760
Amperage Stick - Minimum
30 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
For Material Type
Stainless Steel, Steel
Amperage TIG - Maximum
210 A
Amperage MIG - Maximum
210 A
Amperage Stick - Maximum
210 A
Includes
ArcReach Remote Control Technology
Amperage MIG - Minimum
30 A
Rated Output @ Duty Cycle (TIG)
120 A @ 25 V, 100%, 140 A @ 26 V, 60%, 210 A @ 28 V, 20%
Welding Power Source Type
CC/CV
Air Compressor Maximum Pressure
175 psig
Rated Output @ Duty Cycle (MIG)
120 A @ 20 V, 100%, 140 A @ 21 V, 60%, 210 A @ 25 V, 20%
Rated Output @ Duty Cycle (Stick)
120 A @ 25 V, 100%, 140 A @ 26 V, 60%, 210 A @ 28 V, 20%
Amperage TIG - Minimum
30 A

Description

Engine-Driven Welder, Color Blue, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 210 A, MIG Welding Minimum Output Current 30 A, MIG Welding Output @ Duty Cycle 120 A @ 20 V, 100 Percent, 140 A @ 21 V, 60 Percent, 210 A @ 25 V, 20 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 210 A, Stick Welding Minimum Output Current 30 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
