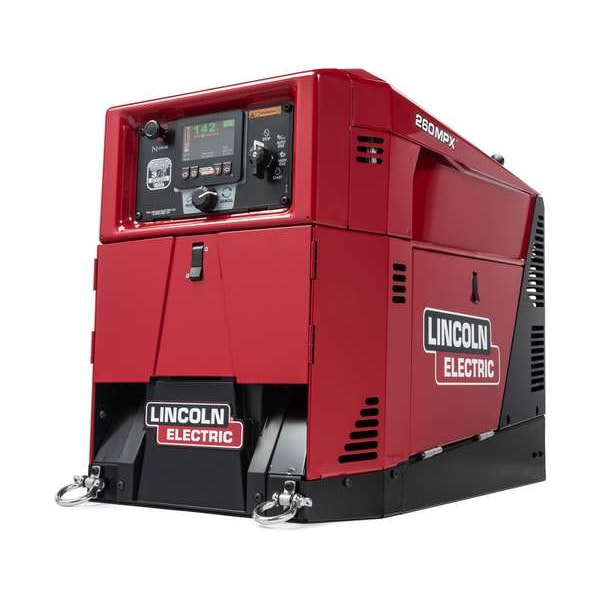

Engine-Driven Welder, Ranger 260 MPX Series, Electric Start, 10,000 W Peak

  • Mfr # K3458-1
  • Zoro # G802319567
product price:
$
10,315.99
/ea
Additional $275.00 delivery surcharge applies per item.
See details

Key Features

Series
Ranger 260 MPX
Start Type
Electric
Continuous Auxiliary Power
9,055 W
Peak Auxiliary Power
10,000 W
Engine Brand
Kohler
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K3458-1
Zoro #
G802319567
UPC #
015082841403
Country of Origin
United States

Details

Item
Engine-Driven Welder
Series
Ranger 260 MPX
Start Type
Electric
Continuous Auxiliary Power
9,055 W
Peak Auxiliary Power
10,000 W
Engine Brand
Kohler
Welding Mode
CC/CV
Model
K3458-1
Stick Welding Output @ Duty Cycle
200 A @ 25 V, 100% (AC), 210 A @ 25 V, 100% (DC)
Stick Welding Maximum Output Current
260 A
Generator Outlets
14-50R 120/240V Receptacle, 5-20R 120 Receptacle (4), 6-50R 240 Receptacle
Fuel Tank Capacity
11 gal
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Welding Maximum Output Current
250 A
TIG Welding Minimum Output Current
20 A
Circuit Breaker
Yes
Generator Fuel Type
Gasoline
Color
Red
Stick Welding Minimum Output Current
35 A
TIG Welding Output @ Duty Cycle
200 A @ 25 V, 100% (AC), 210 A @ 25 V, 100% (DC)
Oil Capacity
1/2 qt
Engine Model
Kohler CH730
Remote Connection Type
6-Pin (Lincoln), 7-Pin (Lincoln)
Horsepower
23.5 hp
Weight
446 lb
Polarity
DC
Phase
Single
Amperage Stick - Maximum
260 A
Amperage TIG - Maximum
250 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Minimum
20 A
Rated Output @ Duty Cycle (Stick)
200 A @ 25 V, 100% (AC), 210 A @ 25 V, 100% (DC)
Welding Power Source Type
CC/CV
Amperage Stick - Minimum
35 A
Rated Output @ Duty Cycle (TIG)
200 A @ 25 V, 100% (AC), 210 A @ 25 V, 100% (DC)
Wire Color
Red

Description

Engine-Driven Welder, Color Red, Generator Fuel Type Gasoline, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 260 A, Stick Welding Minimum Output Current 35 A, Stick Welding Output @ Duty Cycle 200 A @ 25 V, 100 Percent (AC), 210 A @ 25 V, 100 Percent (DC), TIG Welding Maximum Output Current 250 A, TIG Welding Minimum Output Current 20 A, TIG Welding Output @ Duty Cycle 200 A @ 25 V, 100 Percent (AC), 210 A @ 25 V, 100 Percent (DC)
