Shop MILLER ELECTRIC

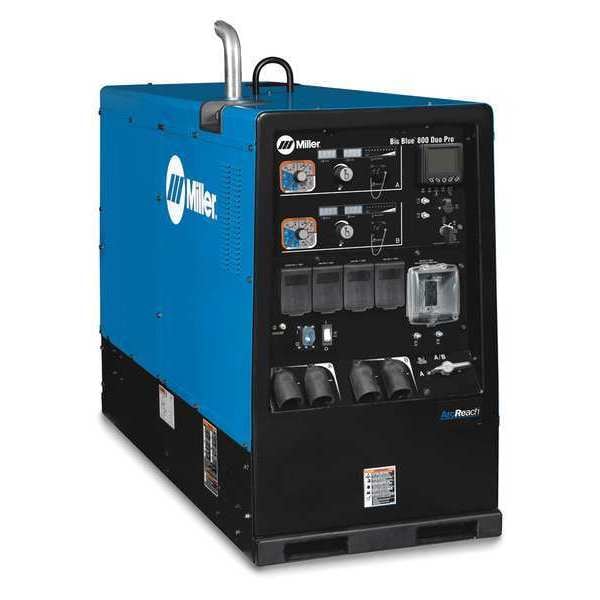

Engine Driven Welder, Big Blue(R) 800 Duo Pro Series, Electric Start, 65.7 hp, Diesel, 27,000 W Peak

  • Mfr # 907751
  • Zoro # G1614160

product price:
$
65,477.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Big Blue 800 Duo Pro
Start Type
Electric
Rated Output CC/DC
800 A @ 38 V, 100%
Amperage Range
20 to 800
Continuous Auxiliary Power
12,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
907751
Zoro #
G1614160
UPC #
715959656900
Country of Origin
United States
Item
Welder Generator
Series
Big Blue 800 Duo Pro
Start Type
Electric
Rated Output CC/DC
800 A @ 38 V, 100%
Amperage Range
20 to 800
Continuous Auxiliary Power
12,000 W
Peak Auxiliary Power
27,000 W
Engine Brand
Deutz
HP
65.7 hp
Fuel Type
Diesel
Phase
Three
Includes
ArcReach Remote Control Technology
Standards
CSA Certified
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Construction, Cross-Country Pipeline, Infrastructure, Maintenance/Repair
Horsepower
66 hp
Generator Outlets
20 A 120V GFCI 5-20R (4), 20 A 240V L6-30R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R
TIG Welding Maximum Output Current
400 A
Engine Model
Deutz TD2.9 L4
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Welding Mode
CC/CV
Circuit Breaker
Yes
Open Circuit Voltage
85 V DC
For Material Type
Stainless Steel, Steel
Weight
1,870 lb
Generator Fuel Type
Diesel
Oil Capacity
8 1/2 qt
MIG Welding Output @ Duty Cycle
400 A @ 34 V, 100% (Dual Output), 750 A @ 40 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)
Polarity
DC
Stick Welding Maximum Output Current
400 A
Sound Level
71.3 dB @ 23 ft (Idle), 78.9 dB @ 23 ft (Weld)
Stick Welding Minimum Output Current
20 A
MIG Welding Maximum Output Current
400 A
Fuel Tank Capacity
25 gal
Stick Welding Output @ Duty Cycle
800 A @ 38 V, 100%
Coolant Tank Capacity
16 qt
TIG Welding Output @ Duty Cycle
800 A @ 38 V, 100%
TIG Welding Minimum Output Current
20 A
Model
907751
Amperage Stick - Maximum
400 A
Amperage TIG - Maximum
400 A
Amperage Stick - Minimum
20 A
Rated Output @ Duty Cycle (TIG)
800 A @ 38 V, 100%
Amperage MIG - Maximum
400 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (Stick)
800 A @ 38 V, 100%
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
400 A @ 34 V, 100% (Dual Output), 750 A @ 40 V, 100% (Combined), 800 A @ 38 V, 100% (Combined)

Dimensions

Height
46 in
Width
28 1/2 in
Depth
69 1/2 in
Overall Height
46 in
Overall Depth
69.5 in
Overall Width
28.5 in

Description

Welder Generator, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 400 A, MIG Welding Output @ Duty Cycle 400 A @ 34 V, 100 Percent (Dual Output), 750 A @ 40 V, 100 Percent (Combined), 800 A @ 38 V, 100 Percent (Combined), Phase Three, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 800 A @ 38 V, 100 Percent
