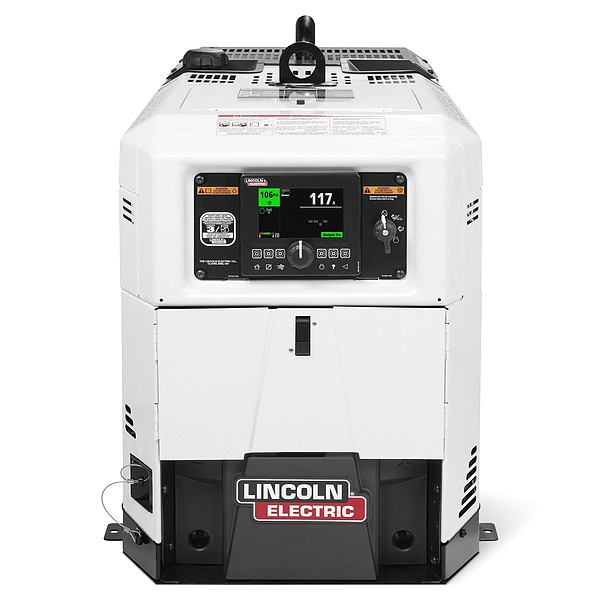

Engine-Driven Welder, Ranger Air 260MPX Series, Electric Start, 11,500 W Peak

  • Mfr # K5238-1

  • Zoro # G910411467


product price:  $21,704.99
/ea
Item requires special delivery charges. A $305.00 per item surcharge will be applied.

Key Features

Series
Ranger Air 260MPX
Start Type
Electric
Continuous Auxiliary Power
9,000 W
Peak Auxiliary Power
11,500 W
Engine Brand
Kohler
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K5238-1
Zoro #
G910411467
UPC #
015082651101
Country of Origin
United States

Dimensions

Overall Width
20 in
Overall Height
29 in
Overall Depth
26 in

Details

Item
Engine-Driven Welder
Series
Ranger Air 260MPX
Start Type
Electric
Continuous Auxiliary Power
9,000 W
Peak Auxiliary Power
11,500 W
Engine Brand
Kohler
Includes
1 (14-50R) are GFCI Protected, 4 (5-20R) 120V Receptacles
Standards
IEC 60974-1
Application
Air Compressor, Battery Charge, Battery Jump Assist, Generator, Multi-Process Welder
Welding Processes
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase
Single-Phase
Model
260MPX(TM)
Color
White
Stick Welding Minimum Output Current
35 A
Stick Welding Maximum Output Current
260 A
Oil Capacity
3 qt
Engine Model
OHV Command ECH749
Welding Mode
CC/CV
MIG Welding Minimum Output Current
35 A
Circuit Breaker
Yes
TIG Welding Maximum Output Current
260 A
Air Compressor Delivery
40 CFM @ 150 PSI
Maximum Pressure - Air Compressor
225 psi
Engine Displacement
45 cu in
Horsepower
26.5 hp
Polarity
DC
Weight
565 lb
Fuel Tank Capacity
11 gal
TIG Welding Minimum Output Current
25 A
Generator Outlets
120/240V AC 12-50R (1), 120V 5-20R (4), 240V AC 6-50R (1)
Open Circuit Voltage
80 V DC
Stick Welding Output @ Duty Cycle
231 A @ 29.2 V, 100%
For Material Type
Aluminum, Stainless Steel, Steel
Generator Fuel Type
Gasoline
MIG Welding Maximum Output Current
260 A
MIG Welding Output @ Duty Cycle
253 A @ 26.7 V, 100%
TIG Welding Output @ Duty Cycle
260 A @ 20.4 V, 100%

Description

Engine-Driven Welder, Color White, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 260 A, MIG Welding Minimum Output Current 35 A, MIG Welding Output @ Duty Cycle 253 A @ 26.7 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 260 A, Stick Welding Minimum Output Current 35 A, Stick Welding Output @ Duty Cycle 231 A @ 29.2 V, 100 Percent

Restrictions

Hazardous material
