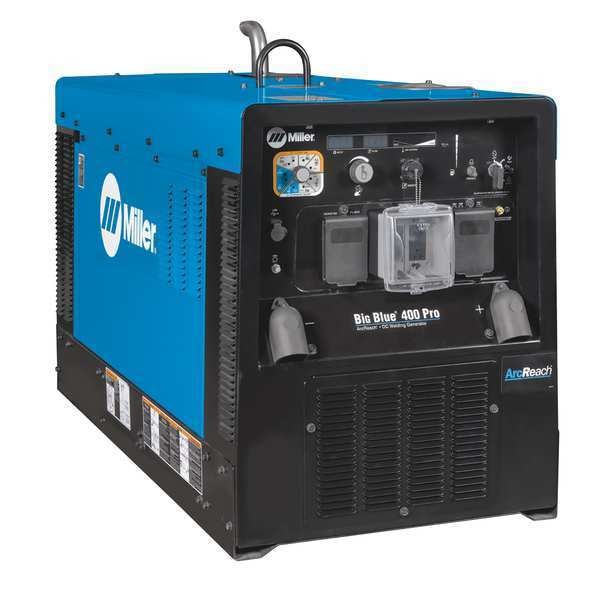

Engine-Driven Welder, Big Blue 400 Pro Series, Electric Start, 20.2 hp, Diesel, 12,000 W Peak

Mfr # 907732001
Zoro # G1613969

32,325.99

Additional $420.00 delivery surcharge applies per item.

Zoro's best price: not eligible for any other offers or promotions

Key Features

Series

Big Blue 400 Pro

Start Type

Electric

Rated Output CC/DC

300A @ 32V, 100% / 325A @ 28V, 100%

Amperage Range

20 to 400

Continuous Auxiliary Power

10,000 W

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 907732001
Zoro #: G1613969
UPC #: 715959649452
Country of Origin: United States

Dimensions

Depth: 56 in
Width: 26 1/4 in
Height: 32 in
Overall Width: 26.25 in
Overall Height: 32 in
Overall Depth: 56 in
For Aluminum Thickness - Minimum: 24 ga
For Stainless Steel Thickness - Minimum: 26 ga
For Steel Thickness - Minimum: 24 ga
For Aluminum Thickness - Maximum: 46,097 in
For Stainless Steel Thickness - Maximum: 46,097 in
For Steel Thickness - Maximum: 46,097 in

Details

Item: Engine-Driven Welder
Series: Big Blue 400 Pro
Start Type: Electric
Rated Output CC/DC: 300A @ 32V, 100% / 325A @ 28V, 100%
Amperage Range: 20 to 400
Continuous Auxiliary Power: 10,000 W
Peak Auxiliary Power: 12,000 W
Engine Brand: Kubota(R)
HP: 20.2 hp
Fuel Type: Diesel
Includes: ArcReach Remote Control Technology
Phase: Single
Standards: cCSAus Certified
Welding Processes: Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application: Fabrication, Mobile Fabrication & MRO, Process Pipe, Structural Welding
Generator Fuel Type: Diesel
Oil Capacity: 6 qt
TIG Welding Maximum Output Current: 400 A
MIG Welding Maximum Output Current: 400 A
Generator Outlets: 20 A 120V GFCI 5-20R (4)
Stick Welding Output @ Duty Cycle: 300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
Polarity: DC
Circuit Breaker: Yes
TIG Welding Output @ Duty Cycle: 300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
MIG Welding Output @ Duty Cycle: 300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
Fuel Tank Capacity: 11.5 gal
Weight: 950 lb
Welding Mode: CC/CV
Engine Model: Kubota V1505
Stick Welding Minimum Output Current: 20 A
Coolant Tank Capacity: 6 qt
Open Circuit Voltage: 85 V DC
Sound Level: 66 dB, 71.6 dB
For Material Type: Stainless Steel, Steel
Stick Welding Maximum Output Current: 400 A
Enhanced Process: Pulsed MIG (GMAW-P), RMD
Horsepower: 20.2 hp
TIG Welding Minimum Output Current: 20 A
Model: 907732
Amperage Stick - Maximum: 400 A
Process: Air Carbon Arc Cutting and Gouging (CAC-A), DC TIG Welding (GTAW-DC), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW)
Amperage TIG - Minimum: 20 A
Amperage Stick - Minimum: 20 A
Rated Output @ Duty Cycle (Stick): 300 A @ 32 V, 100%, 350 A @ 27V, 100%, 400 A @ 24 V, 100%
Rated Output @ Duty Cycle (MIG): 300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
Welding Power Source Type: CC/CV
Rated Output @ Duty Cycle (TIG): 300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
Remote Connection Type: 14-Pin (Miller)
Amperage MIG - Minimum: 60 A
Amperage TIG - Maximum: 400 A
TIG Arc Start Feature: Lift Arc Start
Amperage MIG - Maximum: 400 A

Description

Engine-Driven Welder, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 400 A, MIG Welding Output @ Duty Cycle 300 A @ 32 V, 100 Percent, 350 A @ 27 V, 100 Percent, 400 A @ 24 V, 100 Percent, Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 300 A @ 32 V, 100 Percent, 350 A @ 27 V, 100 Percent, 400 A @ 24 V, 100 Percent
