  9. Multiprocess Welder, Flextec 500X, Phase Three-Phase , 380V AC, 460V AC, 575V AC

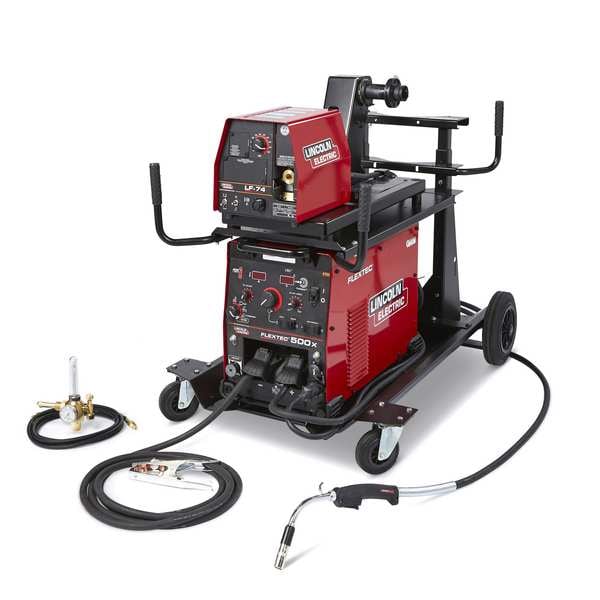

Lincoln Electric Multiprocess Welder, Flextec 500X, Phase Three-Phase , 380V AC, 460V AC, 575V AC K3608-2 - main

Multiprocess Welder, Flextec 500X, Phase Three-Phase , 380V AC, 460V AC, 575V AC

  • Mfr # K3608-2

  • Zoro # G102485757

product price: $15,999.00
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

Series
Flextec 500X
Phase
Three-Phase
Input Voltage
380V AC, 460V AC, 575V AC
Includes
4 Roll Drive and Wire Guide Combination Kit (KP1505-1), Harris Flowmeter Regulator and Hose (3100211), Inverter and Wire Feeder Cart, LF-74 Bench Model (K2426-5), Magnum PRO Curve 400 Gun (K2952-2-10-45), Work Lead Package (K2149-1)
For Wire Type
Aluminum, Flux-Cored, Solid
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K3608-2
Zoro #
G102485757
UPC #
015082863726
Country of Origin
Multiple

Dimensions

Overall Height
18.8 in
Overall Width
14 in
Overall Depth
27.5 in
Maximum Wire Diameter
1/16 in (Aluminum), 1/16 in (Solid), 5/64 in (Flux-Cored)

Details

Item
Multiprocess Welder
Series
Flextec 500X
Phase
Three-Phase
Input Voltage
380V AC, 460V AC, 575V AC
Includes
4 Roll Drive and Wire Guide Combination Kit (KP1505-1), Harris Flowmeter Regulator and Hose (3100211), Inverter and Wire Feeder Cart, LF-74 Bench Model (K2426-5), Magnum PRO Curve 400 Gun (K2952-2-10-45), Work Lead Package (K2149-1)
For Wire Type
Aluminum, Flux-Cored, Solid
Features
Magnum PRO Curve Gun Combines Industrial Grade Construction With With Comfortable, Ergonomic Curve Handle, Multi Process Power Source for All Your Welding Needs, Ready-Paks are Shipped Fully Assembled and Mounted on Cart, Simple, Fabrication / Heavy Fab Shop System, Straightforward, Rugged 4-Roll Wire Feeder
Amperage Range
5 to 500A
Application
General Fabrication, Heavy Equipment, Heavy Fabrication, Structural Fabrication
TIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
TIG Welding Maximum Output Current
500 A
Stick Welding Minimum Output Current
5 A
Polarity
DC
MIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Input Frequency
50/60 Hz
Model
K3608-2
TIG Arc Start Feature
Lift Arc Start
Enhanced Process
Pulsed MIG (GMAW-P)
Plug Type
Bare Leads
Color
Red
Maximum Wire Feed Speed
800 in/min
Standards
CSA, IP23 Rated, UL
Stick Welding Maximum Output Current
500 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Welding Minimum Output Current
5 A
Remote Connection Type
12-Pin (Lincoln), 14-Pin (Lincoln), 5-Pin (Lincoln)
MIG Welding Maximum Output Current
500 A
Stick Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Weight
143 lb
Welding Mode
CC/CV

Description

Multiprocess Welder, Series Flextec 500X, Input Voltage 380V AC, 460V AC, 575V AC, Phase Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 500 A, TIG Welding Maximum Output Current 500 A, MIG Welding Maximum Output Current 500 A, For Wire Type Aluminum, Flux-Cored, Solid
