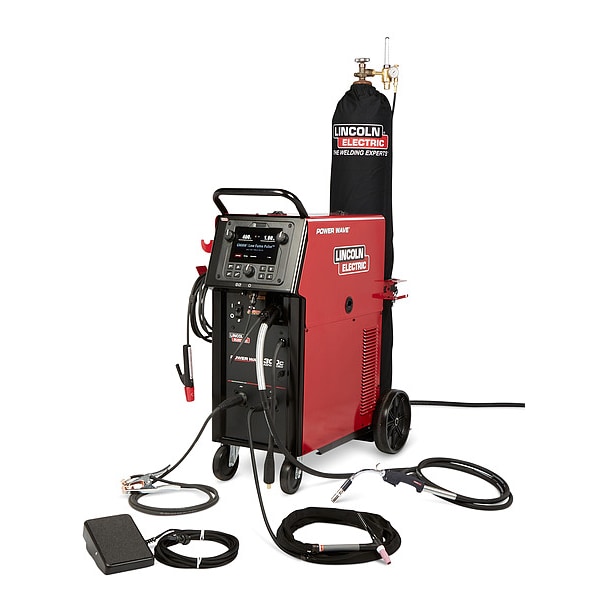

Lincoln Electric Multiprocess Welder, Power Wave 300C, Phase Single-/Three-Phase K4934-1 - main

Multiprocess Welder, Power Wave 300C, Phase Single-/Three-Phase

  • Mfr # K4934-1

  • Zoro # G110133343

product price:  $21,109.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Series
Power Wave 300C
Phase
Single/Three
Input Voltage
200/208/220/230/380/415/460/575V AC
Includes
10 ft Input Power Cord, 10 ft Work Lead, Harris Flowmeter/Regulator and Hose Kit, 12.5 ft PTA-17F TIG Torch Ready-Pak, Stick Electrode Holder Cable with Twist-Mate, Magnum PRO Curve 300 Gun Ready-Pak, Power Wave 300C Advanced, 25 ft 12-Pin Foot Amptrol, 0.035/0.045 in Combination V Groove Drive Rolls (Included in Wire Drive Assembly)
Stick Welding Output @ Duty Cycle
280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K4934-1
Zoro #
G110133343
UPC #
015082959733
Country of Origin
United States

Dimensions

Minimum Wire Diameter
0.045 in (Solid), 0.052 in (Flux-Cored), 3/64 in (Aluminum)
Maximum Wire Diameter
0.025 in (Solid), 0.03 in (Aluminum), 0.035 in (Flux-Cored)
Overall Depth
39.6 in
Overall Width
20.65 in
Overall Height
39.67 in
Power Cord Length
10 ft
For Maximum Material Thickness
1/2 in (Stainless Steel), 1/2 in (Steel), 3/8 in (Copper), 3/8 in (Nickel), 3/8 in (Silicon Bronze), 3/8 in(Aluminum)
For Minimum Material Thickness
12 ga (Copper), 12 ga (Nickel Alloys), 12 ga (Silicon Bronze), 14 ga (Aluminum), 22 ga (Stainless Steel), 22 ga (Steel)
For Aluminum Thickness - Minimum
14 ga
For Steel Thickness - Maximum
1/2 in
Wire Diameter Flux-Cored - Maximum
0.035 in
Wire Diameter Flux-Cored - Minimum
0.052 in
Wire Diameter Aluminum - Minimum
0.046875 in
For Steel Thickness - Minimum
22 ga
For Aluminum Thickness - Maximum
3/8 in
For Stainless Steel Thickness - Minimum
22 ga
Wire Diameter Aluminum - Maximum
0.03 in
Wire Diameter Solid - Minimum
0.045 in
Wire Diameter Solid - Maximum
0.025 in
For Stainless Steel Thickness - Maximum
1/2 in

Details

Item
Multiprocess Welder
Series
Power Wave 300C
Phase
Single/Three
Input Voltage
200/208/220/230/380/415/460/575V AC
Includes
10 ft Input Power Cord, 10 ft Work Lead, Harris Flowmeter/Regulator and Hose Kit, 12.5 ft PTA-17F TIG Torch Ready-Pak, Stick Electrode Holder Cable with Twist-Mate, Magnum PRO Curve 300 Gun Ready-Pak, Power Wave 300C Advanced, 25 ft 12-Pin Foot Amptrol, 0.035/0.045 in Combination V Groove Drive Rolls (Included in Wire Drive Assembly)
Stick Welding Output @ Duty Cycle
280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
Stick Welding Minimum Output Current
280 A
Remote Connection Type
12-Pin (Lincoln)
Input Frequency
50/60 Hz
TIG Welding Maximum Output Current
325 A (Single-Phase/Three-Phase)
TIG Welding Output @ Duty Cycle
300 A @ 22 V, 100%, 325 A @ 23 V, 40%
Weight
226 lb
Standards
CSA Standards
MIG Welding Maximum Output Current
350 A
TIG Arc Control Feature
Adjustable AC Balance, Adjustable AC Frequency
Effective Input Current
35/32/19.5/16/14 A (Single-Phase/Three-Phase/100% Duty Cycle), 44/40/25/20/16.5 A (Single-Phase/Three-Phase/40% Duty Cycle)
TIG Arc Start Feature
High Frequency Start
TIG Welding Minimum Output Current
300 A (Single-Phase/Three-Phase)
Polarity
AC/DC
Enhanced Process
Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
Open Circuit Voltage
70 V DC
Maximum Wire Feed Speed
800 in/min
Color
Red
Features
Advanced Connectivity and Control, Best-in-Class Performance, Ready-to-Run, Smart Fan Operation
Plug Type
Bare Leads
Amperage Range
14 to 44 A
Power Cord Included
Yes
MIG Welding Output @ Duty Cycle
280 A @ 28 V, 100% (Single-Phase), 280 A @ 28 V, 40% (Single-Phase), 280 A @ 28 V, 60% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Three-Phase), 350 A @ 31.5 V, 40% (Three-Phase)
Max. Input Current
35 A (Single-Phase/Three-Phase/100% Duty Cycle), 44 A (Single-Phase/Three-Phase/40% Duty Cycle)
Application
General Fabrication
MIG Welding Minimum Output Current
40 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Minimum Wire Feed Speed
50 in/min
Stick Welding Maximum Output Current
325 A
For Wire Type
Aluminum, Flux-Cored, Solid
Welding Mode
CC/CV
For Material Type
Aluminum, Copper, Nickel Alloys, Silicon Bronze, Stainless Steel, Steel
Model
Power Wave(R) 300C Advanced Educational One-Pak(R)
Maximum Input Current
35 A (Single-Phase/Three-Phase/100% Duty Cycle), 44 A (Single-Phase/Three-Phase/40% Duty Cycle)
Amperage MIG - Maximum
350 A
Amperage TIG - Maximum
325 A
Rated Output @ Duty Cycle (MIG)
280 A @ 28 V, 100% (Single-Phase), 280 A @ 28 V, 40% (Single-Phase), 280 A @ 28 V, 60% (Single-Phase), 300 A @ 29 V, 100% (Three-Phase), 300 A @ 29 V, 60% (Three-Phase), 350 A @ 31.5 V, 40% (Three-Phase)
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage MIG - Minimum
40 A
Amperage Stick - Minimum
280 A
Amperage TIG - Minimum
300 A
Rated Output @ Duty Cycle (TIG)
300 A @ 22 V, 100%, 325 A @ 23 V, 40%
Rated Output @ Duty Cycle (Stick)
280 A @ 31.2 V, 100%, 325 A @ 33 V, 40%
Amperage Stick - Maximum
325 A
Welding Power Source Type
CC/CV

Description

Multiprocess Welder, Series Power Wave 300C, Input Voltage 200/208/220/230/380/415/460/575V AC, Phase Single/Three, Welding Mode CC/CV, Polarity AC/DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 325 A, TIG Welding Maximum Output Current 325 A (Single-Phase/Three-Phase), MIG Welding Maximum Output Current 350 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
