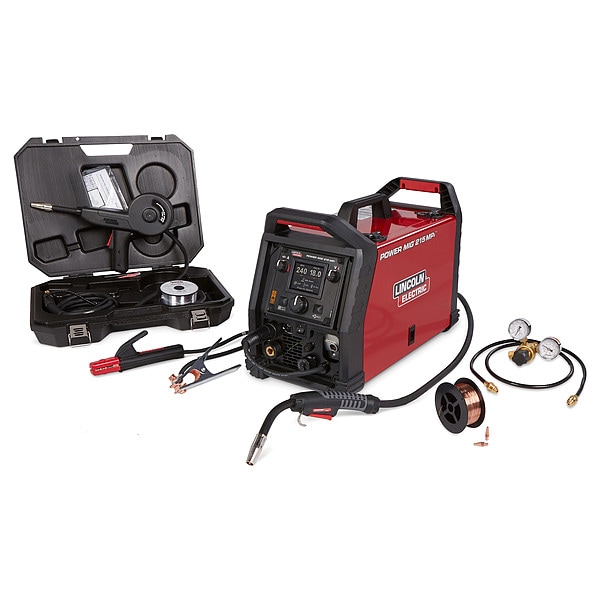

Lincoln Electric Multiprocess Welder, Power MIG 215 MPi, Phase Single-Phase , 120V AC, 230V AC K4877-1 - main

Multiprocess Welder, Power MIG 215 MPi, Phase Single-Phase , 120V AC, 230V AC

  • Mfr # K4877-1

  • Zoro # G809991018

product price:  $4,052.99
/ea
Free Shipping & Returns

Key Features

Series
Power MIG 215 MPi
Phase
Single
Input Voltage
120/230V AC
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance and Repair, Repair Welding
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K4877-1
Zoro #
G809991018
UPC #
015082962641
Country of Origin
United States

Dimensions

Overall Width
10.88 in
Minimum Wire Diameter
0.025 in (Solid), 0.03 in (Flux-Cored)
Overall Depth
23.14 in
Overall Height
15.08 in
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
Power Cord Length
7 ft
For Minimum Material Thickness
14 ga (Aluminum), 24 ga (Stainless Steel), 24 ga (Steel)
For Maximum Material Thickness
1/4 in (Aluminum), 3/8 in (Stainless Steel), 3/8 in (Steel)
For Aluminum Thickness - Maximum
1/4 in
For Steel Thickness - Minimum
24 ga
Wire Diameter Solid - Maximum
0.035 in
Wire Diameter Solid - Minimum
0.025 in
Wire Diameter Flux-Cored - Maximum
0.045 in
Wire Diameter Flux-Cored - Minimum
0.03 in
For Aluminum Thickness - Minimum
14 ga
For Steel Thickness - Maximum
3/8 in
For Stainless Steel Thickness - Minimum
24 ga
For Stainless Steel Thickness - Maximum
3/8 in

Details

Item
Multiprocess Welder
Series
Power MIG 215 MPi
Phase
Single
Input Voltage
120/230V AC
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance and Repair, Repair Welding
Features
ArcFX(R) Technology - Provides Instant Visual Feedback on How Settings Affect the Weld Outcome, Built-In TIG Solenoid and Foot Pedal Adapter, Memory Capability - Recall Saved Settings, Ready.Set.Weld(R) Technology - Recommends Optimal Welding Parameters for Each Welding Procedure, Accepts a TIG Torch, No Installation Required.
Standards
cCSA(us), IEC 60974-1, IEC 60974-5
Minimum Wire Feed Speed
50 in/min
Maximum Wire Feed Speed
500 in/min
Input Frequency
60 Hz
For Wire Type
Flux-Cored, Solid
Remote Connection Type
6-Pin (Lincoln)
MIG Welding Minimum Output Current
20 A
Weight
48 lb
Welding Mode
CC/CV
Polarity
DC
Color
Red
MIG Welding Output @ Duty Cycle
105 A @ 19.3 V, 40% (120 V), 215 A @ 24.8 V, 30% (230 V)
Open Circuit Voltage
56 V DC
Plug Type
6-50P
MIG Welding Maximum Output Current
220 A
TIG Welding Output @ Duty Cycle
100A @ 14V, 100% (120V), 110A @ 14.4V, 100% (230V)
Stick Welding Maximum Output Current
175 A
Effective Input Current
15A @ 120V (Single-Phase) 15.9A @ 230V(Single-Phase)
Stick Welding Output @ Duty Cycle
60A @ 22.4V, 100% (120V), 110A @ 24.4V, 100% (230V)
Model
Multi-Process Welder Aluminum One-Pak(R)
Power Cord Included
Yes
Stick Welding Minimum Output Current
20 A
TIG Welding Minimum Output Current
10 A
TIG Welding Maximum Output Current
175 A
For Material Type
Aluminum, Stainless Steel, Steel
Amperage TIG - Minimum
10 A
Rated Output @ Duty Cycle (MIG)
105 A @ 19.3 V, 40% (120 V), 215 A @ 24.8 V, 30% (230 V)
Welding Power Source Type
CC/CV
Amperage MIG - Maximum
220 A
Amperage TIG - Maximum
175 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage MIG - Minimum
20 A
Amperage Stick - Minimum
20 A
Rated Output @ Duty Cycle (TIG)
100A @ 14V, 100% (120V), 110A @ 14.4V, 100% (230V)
Amperage Stick - Maximum
175 A
Rated Output @ Duty Cycle (Stick)
60A @ 22.4V, 100% (120V), 110A @ 24.4V, 100% (230V)

Description

Multiprocess Welder, Series Power MIG 215 MPi, Input Voltage 120/230V AC, Phase Single, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 175 A, TIG Welding Maximum Output Current 175 A, MIG Welding Maximum Output Current 220 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored)
