Shop LINCOLN ELECTRIC

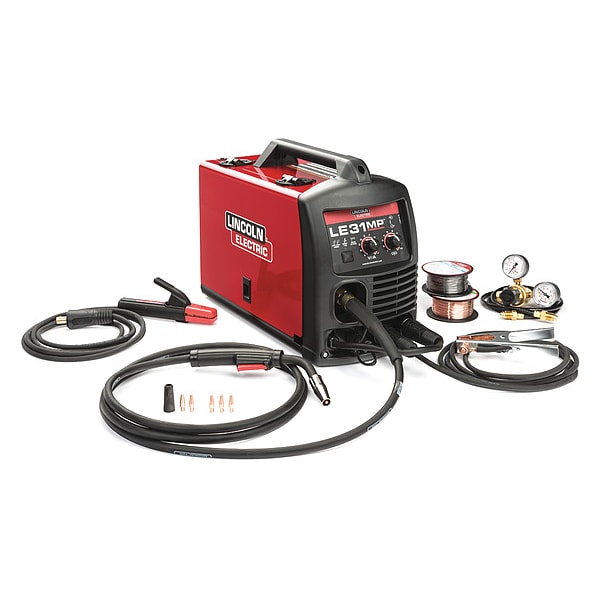

Multiprocess Welder, LE31MP(R), Phase Single-Phase , 120V AC , DC TIG, Flux-Cored, MIG, Stick

  • Mfr # K3461-1

  • Zoro # G3944733

product price:
$
1,177.99
/ea
Free Shipping & Returns

Key Features

Series
LE31MP(R)
Phase
Single
Input Voltage
120V AC
Function
DC TIG, Flux-Cored, MIG, Stick
Rated Output
95A @ 18.75V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K3461-1
Zoro #
G3944733
UPC #
015082833736
Country of Origin
Mexico

Dimensions

Overall Width (In.)
18 7/64 in
Mild Steel - Material Thickness
24 ga to 5/16 in
Overall Height (In.)
8 29/32 in
Aluminum - Material Thickness
18 ga to 1/4 in
Stainless Steel - Material Thickness
18 ga to 1/4 in
Wire Size
0.025 in to 0.035 in
Overall Depth (In.)
13 39/64 in
For Maximum Material Thickness
1/4 in (Aluminum), 1/4 in (Stainless Steel), 5/16 in (Mild Steel)
Overall Width
18.11 in
Overall Depth
13.61 in
Minimum Wire Diameter
0.025 in (Flux-Cored)
Overall Height
8.91 in
Maximum Wire Diameter
0.035 in (Flux-Cored)
For Minimum Material Thickness
1/20 in (Aluminum), 1/20 in (Stainless Steel), 1/40 in (Mild Steel)
For Aluminum Thickness - Minimum
1/20 in
For Steel Thickness - Maximum
5/16 in
For Steel Thickness - Minimum
1/40 in
For Stainless Steel Thickness - Minimum
1/20 in
Wire Diameter Flux-Cored - Maximum
0.035 in
For Stainless Steel Thickness - Maximum
1/4 in
Wire Diameter Flux-Cored - Minimum
0.025 in
For Aluminum Thickness - Maximum
1/4 in

Details

Item
Multiprocess Welder
Series
LE31MP(R)
Phase
Single
Input Voltage
120V AC
Function
DC TIG, Flux-Cored, MIG, Stick
Rated Output
95A @ 18.75V DC
Includes
(3) 0.025 in Tapered Contact Tips (KH831), (3) 0.035 in Tapered Contact Tips (KH833), 0.025 - 0.035 in Dual Track Drive Roll for MIG & Flux-Cored Welding (KP2948-1), Gas Nozzle for MIG Welding (KH835), Gasless Nozzle for Flux-Cored Welding (KH836), Harris 3000290 Gas Regulator (S25805) & 52 in Hose for use with Argon/Carbon Dioxide Blend Gases, Magnum Pro 100L Gun & 10 ft Cable Assembly with Brass Connection & 8-Pin Trigger Connector (K530-7), Sample Spool of 0.025 in SuperArc L-56 MIG Wire, Sample Spool of 0.035 in Innershield NR-211-MP Flux-Cored Wire
Output Range
100 to 120A, 25 to 90A, 30 to 140A
Standards
CSA
Input (Amps)
20
Application
Auto Body, Farm, Home, Shop
Hz
60
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Features
Adjustable Drive System, Brass-to-Brass Gun Connection, Durable Cast Aluminum Gear Box, Easy-Turn Numeric Drive Tension Indicator, Simple (2) Knob Control
Amperage Range
10 A to 140 A
Duty Cycle
60%
Amps AC
140 A
TIG Welding Maximum Output Current
120 A
Input Frequency
60 Hz
Stick Welding Output @ Duty Cycle
80 A @ 23.2 V, 60%
Effective Input Current
20 A @ 120V DC (Single-Phase)
TIG Welding Output @ Duty Cycle
115 A @ 14.6 V, 60%
TIG Welding Minimum Output Current
10 A
Stick Welding Minimum Output Current
25 A
Polarity
DC
Stick Welding Maximum Output Current
90 A
Maximum Wire Feed Speed
500 in/min
Max. Input Current
20 A
For Wire Type
Flux-Cored, Solid
Welding Mode
CV
Minimum Wire Feed Speed
40 in/min
Color
Red
MIG Welding Minimum Output Current
20 A
MIG Welding Output @ Duty Cycle
95 A @ 18.75 V, 60%
MIG Welding Maximum Output Current
95 A
Weight
35 lb
Model
K3461-1
Rated Output @ Duty Cycle (TIG)
115 A @ 14.6 V, 60%
Amperage TIG - Minimum
10 A
Welding Power Source Type
CV
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage MIG - Minimum
20 A
Amperage Stick - Minimum
25 A
Amperage TIG - Maximum
120 A
Maximum Input Current
20 A
Rated Output @ Duty Cycle (Stick)
80 A @ 23.2 V, 60%
Amperage Stick - Maximum
90 A
Amperage MIG - Maximum
95 A
Rated Output @ Duty Cycle (MIG)
95 A @ 18.75 V, 60%

Description

Multiprocess Welder, Series LE31MP(R), Input Voltage 120V AC, Phase Single, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 90 A, TIG Welding Maximum Output Current 120 A, MIG Welding Maximum Output Current 95 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), Maximum Wire Feed Speed 500 in/min, Model K3461-1

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
