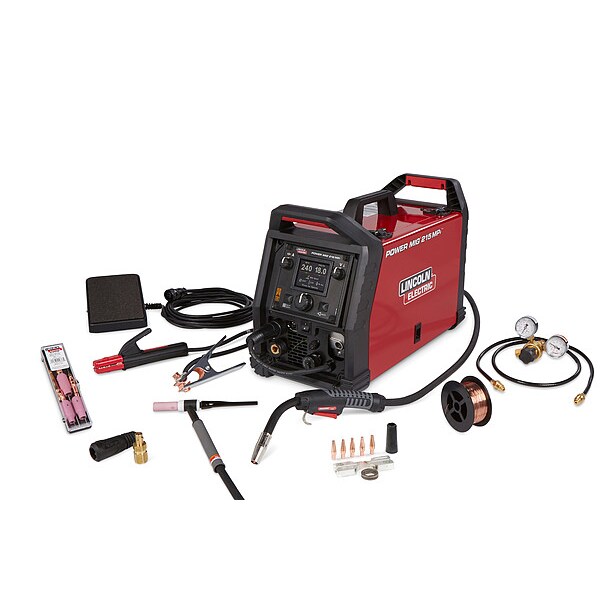

Lincoln Electric Multiprocess Welder, Power MIG 215 MPi, Phase Single-Phase , 120V AC, 230V AC K4878-1 - main

Multiprocess Welder, Power MIG 215 MPi, Phase Single-Phase , 120V AC, 230V AC

  • Mfr # K4878-1

  • Zoro # G509615788

product price:  $4,845.99
/ea
Free Shipping & Returns

Key Features

Series
Power MIG 215 MPi
Phase
Single-Phase
Input Voltage
120V AC, 230V AC
Includes
0.025 - 0.03 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls, 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides, 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips, 0.03 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, 230V to 120V power cord adapter, Adjustable Gas Regulator and Hose, Electrode Holder and Lead Assembly, Foot Amptrol (K870), Gas and Gasless Nozzles, Gun Cable Liner (pre-installed in gun), Magnum PRO 175L Gun 10 ft. (3.0 m) (K4076-1), Parts Kit for PTA-17V TIG Torch (KP508), PTA-17 Ultra-Flex TIG Torch 12.5 ft. (3.8 m) (K1782-1), Sample 2 lb (0.91 kg) Spool of SuperArc L-56 Mild Steel MIG Wire, Spindle Adapter, Twist Mate TIG Torch Adapter ( K1622-1), Work Cable and Clamp
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance, Repair
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4878-1
Zoro #
G509615788
UPC #
-
Country of Origin
Multiple

Dimensions

For Minimum Material Thickness
18 ga (Aluminum), 20 ga (Stainless Steel), 24 ga (Steel)
Overall Depth
23.1 in
Maximum Wire Diameter
0.035 in (Aluminum), 0.035 in (Solid), 0.045 in (Flux-Cored)
Overall Height
15.1 in
Overall Width
10.9 in
For Maximum Material Thickness
3/16 in (Aluminum), 5/16 in (Stainless Steel), 5/16 in (Steel)
Power Cord Length
7 ft
Minimum Wire Diameter
0.023 in (Mild Steel), 0.025 in (Stainless Steel), 0.030 in (Aluminum), 0.030 in (Flux-Cored)

Details

Item
Multiprocess Welder
Series
Power MIG 215 MPi
Phase
Single-Phase
Input Voltage
120V AC, 230V AC
Includes
0.025 - 0.03 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls, 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides, 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips, 0.03 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, 230V to 120V power cord adapter, Adjustable Gas Regulator and Hose, Electrode Holder and Lead Assembly, Foot Amptrol (K870), Gas and Gasless Nozzles, Gun Cable Liner (pre-installed in gun), Magnum PRO 175L Gun 10 ft. (3.0 m) (K4076-1), Parts Kit for PTA-17V TIG Torch (KP508), PTA-17 Ultra-Flex TIG Torch 12.5 ft. (3.8 m) (K1782-1), Sample 2 lb (0.91 kg) Spool of SuperArc L-56 Mild Steel MIG Wire, Spindle Adapter, Twist Mate TIG Torch Adapter ( K1622-1), Work Cable and Clamp
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance, Repair
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
Standard: IEC 60974-1 and IEC 60974-5, US and Canada: Conformity Mark: cCSA(us)
Model
K4878-1
Remote Connection Type
6-Pin (Lincoln)
MIG Welding Output @ Duty Cycle
105 A @ 19.3 V, 40% (120 A), 215 A @ 24.8 V, 30% (230 V)
Stick Welding Minimum Output Current
20 A
TIG Welding Maximum Output Current
175 A
Plug Type
6-50P
Stick Welding Maximum Output Current
175 A
Power Cord Included
Yes
MIG Welding Minimum Output Current
20 A
Input Frequency
60 Hz
Maximum Wire Feed Speed
500 in/min
Max. Input Current
29 A
For Material Type
Aluminum, Stainless Steel, Steel
Polarity
DC
For Wire Type
Aluminum, Flux-Cored, Solid
Weight
48 lb
MIG Welding Maximum Output Current
220 A
Stick Welding Output @ Duty Cycle
105 A @ 19.3 V, 40% (120 A), 215 A @ 24.8 V, 30% (230 V)
TIG Welding Minimum Output Current
10
Welding Mode
CC/CV
TIG Welding Output @ Duty Cycle
105 A @ 19.3 V, 40% (120 A), 215 A @ 24.8 V, 30% (230 V)
Open Circuit Voltage
56 V
Minimum Wire Feed Speed
50 in/min
Color
Black, Red
Effective Input Current
15 A @120V AC (Single-Phase), 22 A @ 230V AC (Single-Phase)

Description

Multiprocess Welder, Series Power MIG 215 MPi, Input Voltage 120V AC, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 175 A, TIG Welding Maximum Output Current 175 A, MIG Welding Maximum Output Current 220 A, For Wire Type Aluminum, Flux-Cored, Solid
