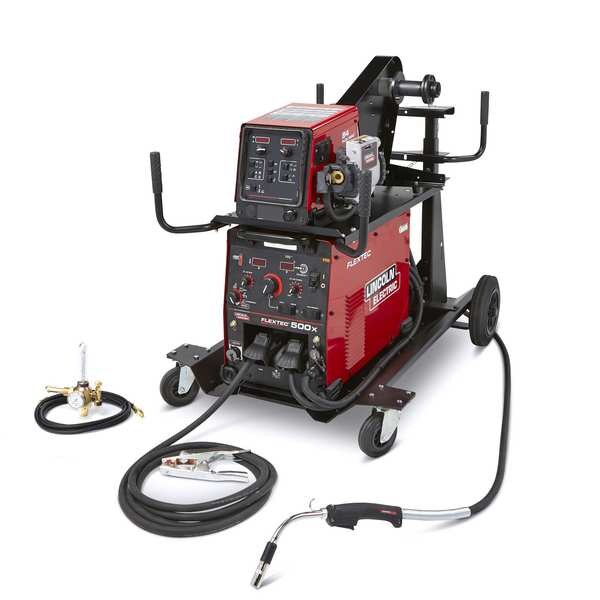

Lincoln Electric Multiprocess Welder, Flextec 500X, Phase Three-Phase , 380V AC, 460V AC, 575V AC K3608-4 - main

Multiprocess Welder, Flextec 500X, Phase Three-Phase , 380V AC, 460V AC, 575V AC

  • Mfr # K3608-4

  • Zoro # G602485776

product price:  $21,978.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Series
Flextec 500X
Phase
Three
Input Voltage
380/460/575V AC
Includes
4 Roll Drive and Wire Guide Combination Kit (KP1505-1), Harris Regulator (3100211), Inverter and Wire Feeder Cart ( K3059-4), Magnum PRO Curve 400 (K2952-2-10-45), Work Lead Package (K2149-1)
Welding Mode
CC/CV
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K3608-4
Zoro #
G602485776
UPC #
015082863740
Country of Origin
Multiple

Dimensions

Overall Width
14 in
Maximum Wire Diameter
0.12 in (Flux-Cored), 3/32 in (Aluminum), 3/32 in (Solid)
Overall Height
18.8 in
Overall Depth
27.5 in
Wire Diameter Solid - Maximum
0.09375 in
Wire Diameter Aluminum - Maximum
0.09375 in
Wire Diameter Flux-Cored - Maximum
0.12 in

Details

Item
Multiprocess Welder
Series
Flextec 500X
Phase
Three
Input Voltage
380/460/575V AC
Includes
4 Roll Drive and Wire Guide Combination Kit (KP1505-1), Harris Regulator (3100211), Inverter and Wire Feeder Cart ( K3059-4), Magnum PRO Curve 400 (K2952-2-10-45), Work Lead Package (K2149-1)
Welding Mode
CC/CV
Features
Flex Feed 84 is the Ideal Feeder for Shops That Require Rugged Durability and Process Control, Industrial, Heavy Fab System, Magnum PRO Curve Gun Combines Industrial Grade Construction With With Comfortable, Ergonomic Curve Handle, Multi Process Power Source for All Your Welding Needs, Ready-Paks are Shipped Fully Assembled and Mounted on Cart
Stick Welding Maximum Output Current
500 A
Maximum Wire Feed Speed
500 in/min
Input Frequency
50/60 Hz
Polarity
DC
TIG Welding Maximum Output Current
500 A
Plug Type
Bare Leads
Standards
CSA, IP23 Rated, UL
Enhanced Process
Pulsed MIG (GMAW-P)
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
For Wire Type
Aluminum, Flux-Cored, Solid
TIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
MIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Application
Construction and Field Erection, Cross Country Pipeline, General Fabrication, Heavy Equipment, Heavy Fabrication, Structural Fabrication
Weight
143 lb
Stick Welding Minimum Output Current
5 A
Amperage Range
5 to 500A
MIG Welding Maximum Output Current
500 A
Remote Connection Type
12-Pin (Lincoln), 14-Pin (Lincoln), 5-Pin (Lincoln)
Model
K3608-4
Color
Red
TIG Welding Minimum Output Current
5 A
Stick Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
TIG Arc Start Feature
Lift Arc Start
Amperage Stick - Minimum
5 A
Rated Output @ Duty Cycle (MIG)
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Amperage TIG - Maximum
500 A
Amperage MIG - Maximum
500 A
Welding Power Source Type
CC/CV
Amperage TIG - Minimum
5 A
Rated Output @ Duty Cycle (TIG)
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Amperage Stick - Maximum
500 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (Stick)
450 A @ 38 V, 100%, 500 A @ 40 V, 60%

Description

Multiprocess Welder, Series Flextec 500X, Input Voltage 380/460/575V AC, Phase Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 500 A, TIG Welding Maximum Output Current 500 A, MIG Welding Maximum Output Current 500 A, For Wire Type Aluminum, Flux-Cored, Solid

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
