  5. Multiprocess Welder, Rebel EMP 235ic, Phase Single-Phase , 120V AC, 208V AC, 230V AC , Flux Core, MIG
Esab Multiprocess Welder, Rebel EMP 235ic, Phase Single-Phase , 120V AC, 208V AC, 230V AC , Flux Core, MIG 0558012704 - main

Multiprocess Welder, Rebel EMP 235ic, Phase Single-Phase , 120V AC, 208V AC, 230V AC , Flux Core, MIG

  • Mfr # 0558012704

  • Zoro # G1566323

product price:  $4,384.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

Series
Rebel EMP 235ic
Phase
Single-Phase
Input Voltage
120V AC, 208V AC, 230V AC
Function
Flux Core, MIG
Rated Output
150A@120V DC, 250A@230V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
0558012704
Zoro #
G1566323
UPC #
662067959211
Country of Origin
Multiple

Dimensions

Aluminum - Material Thickness
18 ga to 1/2 in
Overall Width (In.)
11 1/2 in
Overall Height (In.)
26 1/2 in
Wire Size
Aluminum 0.030 in to 0.047 in, Flux Cored 0.030 in to 0.052 in, Mild Steel 0.023 in to 0.045 in, Stainless Steel 0.030 in to 0.045 in
Overall Depth (In.)
19 1/2 in
Minimum Wire Diameter
0.024 in (Mild Steel), 0.030 in (Aluminum), 0.030 in (Flux-Cored), 0.030 in (Stainless Steel)
Overall Depth
19.5 in
For Maximum Material Thickness
1/2 in (Steel)
Maximum Wire Diameter
0.045 in (Mild Steel), 0.045 in (Stainless Steel), 0.047 in (Aluminum), 0.052 in (Flux-Cored)
Overall Height
26.5 in
Overall Width
11.5 in
Power Cord Length
10 ft
For Minimum Material Thickness
24 ga (Steel)

Details

Item
Multiprocess Welder
Series
Rebel EMP 235ic
Phase
Single-Phase
Input Voltage
120V AC, 208V AC, 230V AC
Function
Flux Core, MIG
Rated Output
150A@120V DC, 250A@230V DC
Includes

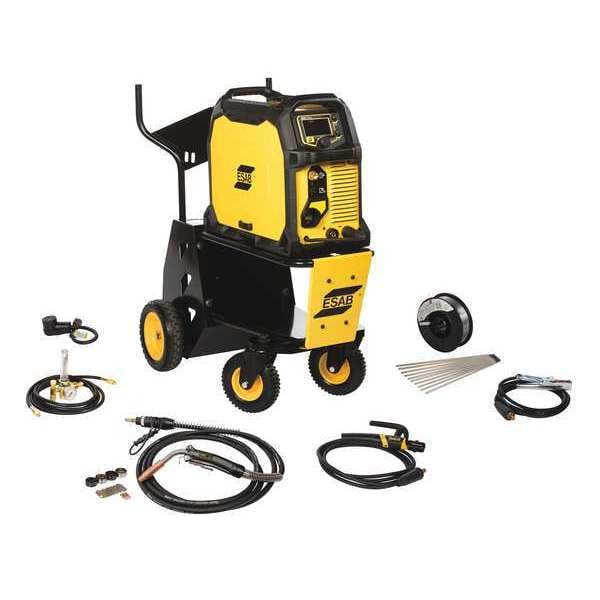

0.035 in Wire, Contact Tips, Drive Rolls, Electrode Holder, ESAB Atom Arc 7018 Electrodes, Return Clamp with Leads, Single Cylinder Cart, Tweco Spray Master 250 MIG Gun, Victor Argon Flowmeter Regulator with 12-1/2 ft Hose
Input (Amps)
5/60
Duty Cycle
40%
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Hz
50/60
Application
Agricultural Equipment, Automotive, Civil Construction, HVAC, Industrial and General Fabrication, Repair and Maintenance
Features
MIG Technology, Unmatched Portability
Standards
CSA E60974-1, IEC 60974-1, UL 60974-1
Amps AC
5-250ADC
Output Range
5 to 250A DC
OCV
90
Amperage Range
5 A to 250 A
Minimum Wire Feed Speed
60 in/min
Weight
53 lb
TIG Welding Minimum Output Current
5 A
Plug Type
6-50P
TIG Arc Start Feature
Lift Arc Start
Stick Welding Output @ Duty Cycle
210 A @ 28.4 V, 25%, 90 A @ 23.6 V, 40%
Stick Welding Minimum Output Current
5 A
MIG Welding Output @ Duty Cycle
120 A @ 19 V, 40%, 235 A @ 26 V, 40%
Max. Input Current
150 A @ 120 V, 250 A @ 230 V
Open Circuit Voltage
90 V DC
Effective Input Current
150 A @ 120V AC (Single-Phase), 250 A @ 230V AC (Single-Phase)
Welding Mode
CC/CV
For Wire Type
Aluminum, Flux-Cored, Solid
Color
Yellow
MIG Welding Minimum Output Current
5 A
Power Cord Included
Yes
Polarity
DC
Input Frequency
50/60 Hz
Stick Welding Maximum Output Current
250 A
Remote Connection Type
8-Pin (ESAB)
MIG Welding Maximum Output Current
250 A
TIG Welding Maximum Output Current
250 A
TIG Welding Output @ Duty Cycle
130 A @ 15.2 V, 40%, 240 A @ 19.6 V, 40%
Maximum Wire Feed Speed
700 in/min
For Material Type
Aluminum, Mild Steel, Stainless Steel
Model
0558012704

Description

Multiprocess Welder, Series Rebel EMP 235ic, Input Voltage 120V AC, 208V AC, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 250 A, TIG Welding Maximum Output Current 250 A, MIG Welding Maximum Output Current 250 A, For Wire Type Aluminum, Flux-Cored, Solid
