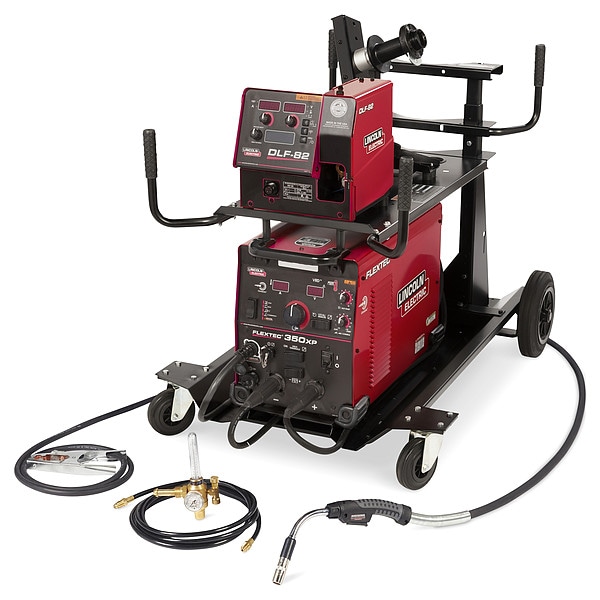

Lincoln Electric Multiprocess Welding Package, Flextec 350XP, Phase Three-Phase , 380V AC, 460V AC, 575V AC K5335-1 - main

Multiprocess Welding Package, Flextec 350XP, Phase Three-Phase , 380V AC, 460V AC, 575V AC

  • Mfr # K5335-1

  • Zoro # G009440118

product price:  $15,700.99
/ea
Additional $320.00 delivery surcharge applies per item.
See details

Key Features

Series
Flextec 350XP
Phase
Three
Input Voltage
380/460/575V AC
Includes
2/0 Tweco Male & GC500 Tweco Male & Lug Work & Power Lead Cable Package 10 ft (K1803-2), 8.5 ft input cord, Cart for Inverter and Wire Feeder (K3059-4), DLF-82 Base Model with Integrated 8 ft ArcLink Control Cable (5282-1), DLF-Feeder Cart Mounting Bracket (K5395-1), DLF-Feeder Wire Reel Stand (K5284-1), Drive Roll Kit Combination .035 in / .045 in Solid Wire (KP1696-1), Flextec 350X Locking Foot Kit (K4424-1), Flextec 350XP with Tweco Connectors (K4272-2), Magnum PRO Curve HDE 350 Welding Gun (K4532-2-10-45), Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit (3100211)
Standards
IP23 Rated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K5335-1
Zoro #
G009440118
UPC #
015082991351
Country of Origin
United States

Dimensions

Overall Depth
27 in
Overall Width
13 in
Overall Height
17 in
For Minimum Material Thickness
14 Ga (Aluminum), 24 Ga (Stainless), 24 Ga (Steel)
Power Cord Length
8 1/2 ft
Minimum Wire Diameter
.023 in (Mild Steel), .030 in (Stainless Steel), .035 in (Aluminum), .035 in (Flux-Cored)
For Maximum Material Thickness
1/2 in (Stainless), 1/2 in (Steel), 3/8 in (Aluminum)
Maximum Wire Diameter
1/16 in (Aluminum), 1/16 in (Mild Steel, Stainless), 5/64 in (Flux-Cored)
Wire Diameter Aluminum - Minimum
0.035 in
Wire Diameter Flux-Cored - Maximum
0.078125 in
For Stainless Steel Thickness - Minimum
24 ga
For Steel Thickness - Minimum
24 ga
Wire Diameter Aluminum - Maximum
0.0625 in
Wire Diameter Flux-Cored - Minimum
0.035 in
For Aluminum Thickness - Maximum
3/8 in
For Stainless Steel Thickness - Maximum
1/2 in
Wire Diameter Solid - Maximum
0.0625 in
For Aluminum Thickness - Minimum
14 ga
Wire Diameter Solid - Minimum
0.023 in
For Steel Thickness - Maximum
1/2 in

Details

Item
Multiprocess Welding Package
Series
Flextec 350XP
Phase
Three
Input Voltage
380/460/575V AC
Includes
2/0 Tweco Male & GC500 Tweco Male & Lug Work & Power Lead Cable Package 10 ft (K1803-2), 8.5 ft input cord, Cart for Inverter and Wire Feeder (K3059-4), DLF-82 Base Model with Integrated 8 ft ArcLink Control Cable (5282-1), DLF-Feeder Cart Mounting Bracket (K5395-1), DLF-Feeder Wire Reel Stand (K5284-1), Drive Roll Kit Combination .035 in / .045 in Solid Wire (KP1696-1), Flextec 350X Locking Foot Kit (K4424-1), Flextec 350XP with Tweco Connectors (K4272-2), Magnum PRO Curve HDE 350 Welding Gun (K4532-2-10-45), Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit (3100211)
Standards
IP23 Rated
Features
Adaptive Arc, Arc Control, Auto Settings, Gun Trigger Memory Recall, Memory Presets, PIN Lockout, Pulse Mig Modes, Synergic Control, Weld Mode Lock-Out, Weld Parameter Limits
Application
Fabrication, Manufacturing
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Welding Maximum Output Current
425
For Wire Type
Aluminum, Flux-Cored, Solid
Max. Input Current
23 A @ 575 V (Three-Phase), 28 A @ 460 V (Three-Phase)
MIG Welding Output @ Duty Cycle
300 A @ 32 V, 100%, 350 A @ 34 V, 60%
Remote Connection Type
12-Pin (Lincoln), 14-Pin (Lincoln), 5-Pin (Lincoln)
Power Cord Included
Yes
Stick Welding Maximum Output Current
425 A
MIG Welding Minimum Output Current
30 A
Weight
430 lb
Maximum Wire Feed Speed
800 in/min
Minimum Wire Feed Speed
50 in/min
Open Circuit Voltage
80 V DC
Welding Mode
CC/CV
MIG Welding Maximum Output Current
425 A
Polarity
DC
For Material Type
Aluminum, Stainless Steel, Steel
Effective Input Current
22 A @ 575V AC (Three-Phase), 28 A @ 460V AC (Three-Phase)
Color
Black/Red
Enhanced Process
Pulsed MIG (GMAW-P)
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
TIG Welding Output @ Duty Cycle
300 A @ 22 V, 100%, 350 A @ 24 V, 60%
Stick Welding Output @ Duty Cycle
300 A @ 32 V, 100%, 350 A @ 34 V, 60%
TIG Arc Control Feature
Adjustable AC Balance, Adjustable AC Frequency
Stick Welding Minimum Output Current
5 A
Model
K5335-1
Input Frequency
50/60 Hz
TIG Welding Minimum Output Current
A
Amperage Stick - Minimum
5 A
Welding Power Source Type
CC/CV
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
425 A
Rated Output @ Duty Cycle (TIG)
300 A @ 22 V, 100%, 350 A @ 24 V, 60%
Rated Output @ Duty Cycle (MIG)
300 A @ 32 V, 100%, 350 A @ 34 V, 60%
Maximum Input Current
23 A @ 575 V (Three-Phase), 28 A @ 460 V (Three-Phase)
Rated Output @ Duty Cycle (Stick)
300 A @ 32 V, 100%, 350 A @ 34 V, 60%
Amperage Stick - Maximum
425 A
Amperage MIG - Maximum
425 A
Amperage MIG - Minimum
30 A

Description

Multiprocess Welding Package, Series Flextec 350XP, Input Voltage 380/460/575V AC, Phase Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A, TIG Welding Maximum Output Current 425, MIG Welding Maximum Output Current 425 A, For Wire Type Aluminum, Flux-Cored, Solid
