Shop MILLER ELECTRIC

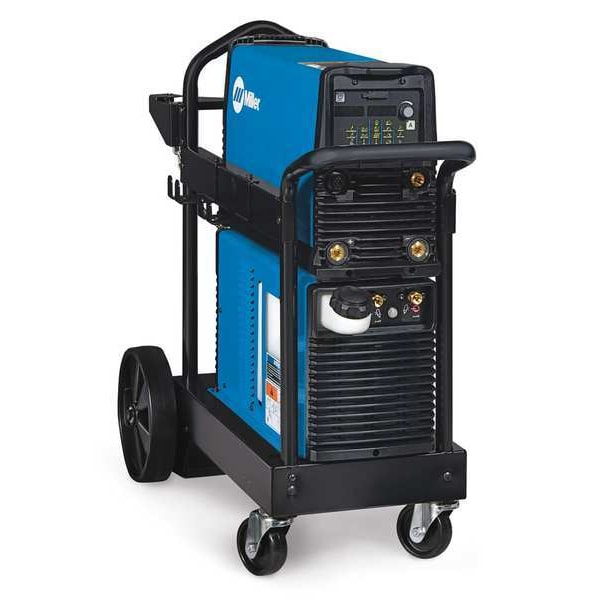

TIG Welder, Maxstar 280 DX Series, 208 to 575V AC, 208V AC, 575V AC, 280 Max. Output Amps

  • Mfr # 907539001

  • Zoro # G9124227

product price:
$
13,636.99
/ea
Additional $85.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Welder Industrial Class
Medium
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.004 in to 3/8 in
Input Voltage
208 to 575V AC, 208V AC, 575V AC
Rated Output
235A @ 19V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
907539001
Zoro #
G9124227
UPC #
715959578318
Country of Origin
United States
Welder Industrial Class
Medium
Item
TIG Welder
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208 to 575V AC, 208V AC, 575V AC
Rated Output
235A @ 19V
Welder Max. Output Amps
280
Welder Min. Output Amps
1
Welder Duty Cycle
60 %
Series
Maxstar 280 DX
Welder Input Hz
50/60
Includes
Coolmate 1.3, Small Runner Cart
Input (Amps)
28/26/15/13/10
Features
Built-In Pulser, HF Arc Starting, Hot-Start(TM), Inverter-Based DC Power Source, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, Stick, Stick-Stuck Detect
Welded Material
Steel
Polarity
AC/DC
Application
Aerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Welder Input Phase
1 or 3
Power Source Weight
47 lb
Phase
Single/Three
Standards
CE, CSA, ISO
Stick Welding Maximum Output Current
280 A
Stick Welding Minimum Output Current
1 A
TIG Welding Maximum Output Current
280 A
Input Frequency
50/60 Hz
TIG Welding Minimum Output Current
1 A
Stick Welding Output @ Duty Cycle
235 A @ 19 V, 60%
TIG Welding Output @ Duty Cycle
235 A @ 19 V, 60%
Power Cord Included
Yes
Color
Blue/Black
Plug Type
Bare Leads
Amperage Range
1 to 280 A
Open Circuit Voltage
60V DC
Welding Mode
CC
Weight
47 lb
For Material Type
Steel
Max. Input Current
20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)
Model
907539001
Welding Power Source Type
CC
Amperage Stick - Maximum
280 A
Amperage Stick - Minimum
1 A
Amperage TIG - Minimum
1 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (Stick)
235 A @ 19 V, 60%
Amperage TIG - Maximum
280 A
Rated Output @ Duty Cycle (TIG)
235 A @ 19 V, 60%
Maximum Input Current
20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)

Description

TIG Welder, For Material Type Steel, For Maximum Material Thickness 3/8 in (Mild Steel), For Minimum Material Thickness 0.004 in (Mild Steel), Input Frequency 50/60 Hz, Max. Input Current 20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Maxstar 280 DX, Stick Welding Maximum Output Current 280 A, Stick Welding Minimum Output Current 1 A, Stick Welding Output @ Duty Cycle 235 A @ 19 V, 60 Percent, TIG Welding Maximum Output Current 280 A
