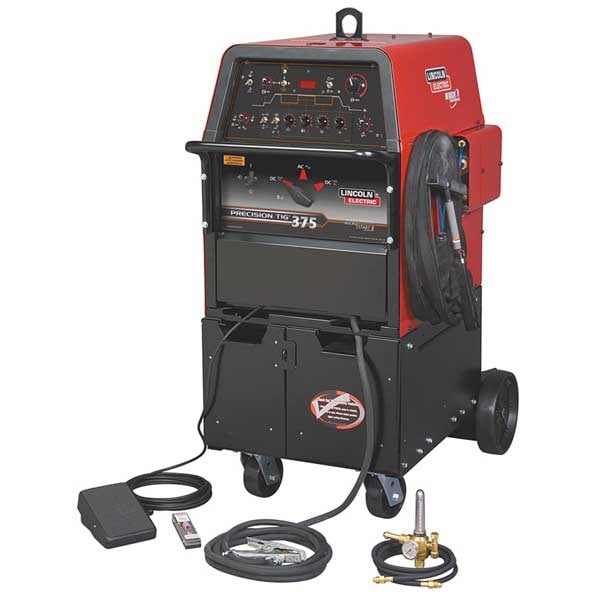

Lincoln Electric TIG Welder, Precision TIG 375 Series, 208V AC, 230V AC, 460V AC, 420 Max. Output Amps K2624-1 - main

TIG Welder, Precision TIG 375 Series, 208V AC, 230V AC, 460V AC, 420 Max. Output Amps

  • Mfr # K2624-1

  • Zoro # G9861941

product price:  $20,744.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Welder Industrial Class
Heavy
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/230/460V AC
Rated Output
375A @ 35V
Welder Max. Output Amps
420
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K2624-1
Zoro #
G9861941
UPC #
015082679808
Country of Origin
United States

Dimensions

Overall Depth
41 in
Overall Height
49.7 in
Overall Width
28 in
Power Cord Length
25 ft

Details

Welder Industrial Class
Heavy
Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
208/230/460V AC
Rated Output
375A @ 35V
Welder Max. Output Amps
420
Welder Min. Output Amps
2
Welder Duty Cycle
40 %
Series
Precision TIG 375
Power Source Weight
751 lb
Includes
(3) 25 ft K1784-4 PTW-20 TIG Torch, 2/0, 350A, 60% - 15 ft (4.6 m) K2150-1 Work Lead - Lug & GC500 Ground Clamp, 22 ft (6.7 m) K918-2 Zippered Cable Cover, 25 ft (7.6 m) 6 Pin K870 Foot Amptrol(TM), 3100211 Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit, K1828-1 Under-Cooler Cart Water Cooler, KP510 Parts Kit, Precision TIG 375 Welder
Features
Advanced Pulse Control Panel (Optional On the Precision TIG 275), Side-Mounted Torch Holder and Connections, Simplicity Through Technology, Wide Output Range
Welder Input Phase
1
Application
Cleaning and Penetration for Welding
Input (Amps)
112/102/51
Polarity
AC/DC
Welder Input Hz
50/60
Welded Material
Aluminum, Mild Steel, Stainless Steel
Phase
Single
TIG Welding Output @ Duty Cycle
375 A @ 35 V, 40%
Input Frequency
60 Hz
Weight
751 lb
Welding Mode
CC
TIG Welding Minimum Output Current
2 A
Stick Welding Maximum Output Current
420 A
Color
Red/Black
Stick Welding Minimum Output Current
2 A
Plug Type
Bare Leads
Amperage Range
2 to 420 A
Stick Welding Output @ Duty Cycle
375 A @ 35 V, 40%
For Material Type
Aluminum
TIG Welding Maximum Output Current
420 A
Open Circuit Voltage
80V
Model
K2624-1
Amperage Stick - Maximum
420 A
Rated Output @ Duty Cycle (TIG)
350 A, 60%, 375 A, 40%
Amperage Stick - Minimum
2 A
Welding Power Source Type
CC
Process
Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Minimum
2 A
TIG Arc Start Feature
Micro-Start(TM) II Technology
Rated Output @ Duty Cycle (Stick)
375 A @ 35 V, 40%
Power Cord Included
Yes
Amperage TIG - Maximum
420 A
Maximum Input Current
112/102/51 A
Remote Connection Type
6-Pin (Lincoln)
Remote Control
Foot Control Included: Remote Control Not Included

Description

TIG Welder, For Material Type Aluminum, Mild Steel, Stainless Steel, Input Frequency 60 Hz, Phase Single-Phase, Polarity AC/DC, Series Precision TIG 375, Stick Welding Maximum Output Current 420 A, Stick Welding Minimum Output Current 2 A, Stick Welding Output @ Duty Cycle 375 A @ 35 V, 40 Percent, TIG Welding Maximum Output Current 420 A, TIG Welding Minimum Output Current 2 A, TIG Welding Output @ Duty Cycle 375 A @ 35 V, 40 Percent, Welding Processes Stick Welding (SMAW), TIG Welding (GTAW)
