Shop LIQUIDYNAMICS

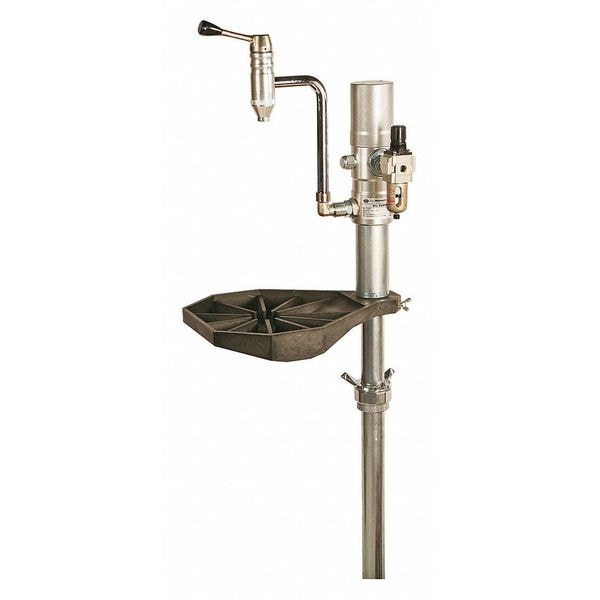

Air Drum Pump, 4 gpm, 120 psi, 1:1

  • Mfr # 32099-S6

  • Zoro # G4862711

product price:  $951.99
/ea
Free Shipping & Returns

Key Features

Type
Air-Operated
Air Motor Size (In.)
3 in
Container Size
16 gal
Consumption @ 100 PSI
12 cfm
Working Flow Max. (GPM)
4 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
32099-S6
Zoro #
G4862711
UPC #
-
Country of Origin
Italy

Dimensions

Air Motor Size (In.)
3 in
Container Size
16 gal
Outlet Size
1/2 in NPT
Air Outlet Size
1/2 in
For Container Size
16 gal
Container Size Included
55 gal
Suction Tube Length
9 in
Adapter Connection Diameter
2 in
Hose Inside Diameter
1/2 in
Air Inlet Connection Size
1/4 in

Details

Item
Air Drum Pump
Type
Air-Operated
Consumption @ 100 PSI
12 cfm
Working Flow Max. (GPM)
4 gpm
Output
4 gpm
Interval Time Between Cycles (Min.)
0.08 min
Pump Ratio
1:1
Includes
Filter Regulator, Spigot, Support Shelf
Fluid Outlet Thread (In.)
1/2 FNPT
Air Inlet (In.)
1/4 FNPT
Max. Air Inlet PSI
120 psi
Outlet Pressure Max. (PSI)
120 psi
Fluid Inlet Thread (In.)
1 FNPT
For Use With
Oil
Fluid In/Out NPT (F)
1 in/ 1/2 in
Min. Air Inlet Pressure
50 psi
Capacity
55 gal
Pump for Multiple Outlets
No
For Container Type
Drum
Power Source
Air
Air Consumption
12 cfm
Features
Removeable Support Shelf Drip Pan
Meter Type Included
No Meter Included
Nozzle Operation
Manual
Suction Tube Material
Steel
Wetted Material
Aluminum/Nitrile/Steel
Minimum Air Pressure
120 psi
Standards
CE
Includes Follower Plate
No Follower Plate Included
Includes Nozzle
No
Includes Suction Tube
No
Hazardous Location Class
Not Rated
Noise Level
90 dB
Air Inlet Connection Type
FNPT
Chemical Compatibility
Engine Oil, Gear Lube, Hydraulic Oil
Discharge Tube Outlet ID
1/2 in
Maximum Air Pressure
120 psi
Maximum Outlet Pressure
120 psi
Pressure Ratio
1:1
For SAE Viscosity Grade - Maximum
140
Maximum Head
290 ft
Variable Speed
No
Maximum Head Pressure
120 psi
Static Protection
Not Groundable
Includes Discharge Hose
Yes
Adapter Connection Standard
FNPT
Maximum Viscosity
9,000 cps
Housing Finish
Zinc Casted
Maximum Fluid Temperature
150 Degrees F
Includes Spout
No
Suction Tube OD
1 5/8 in
Container Cover Type Included
No Cover Included
Maximum Flow Rate
4 gpm
Duty Cycle
Continuous
Discharge Connection Type
FNPT
Pump Technology
Piston
Discharge Tube Outlet OD
1/2 in
Includes Bung Adapter
Yes
Housing Material
Aluminum/Steel
Power Source - TS Only
Air

Description

Air Drum Pump, Max. Air Pressure 120 psi, Suction Tube Material Steel, Discharge Connection Type FNPT, Features Removeable Support Shelf Drip Pan, Thermal Protection Not Applicable, Air Outlet Size 1/2 in, Air Consumption 12 cfm, Hose Length Not Applicable, Variable Speed No, Includes Discharge Hose Yes, Noise Level 90 dB, Duty Cycle Continuous, Includes Suction Tube No, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout No
