Shop LIQUIDYNAMICS

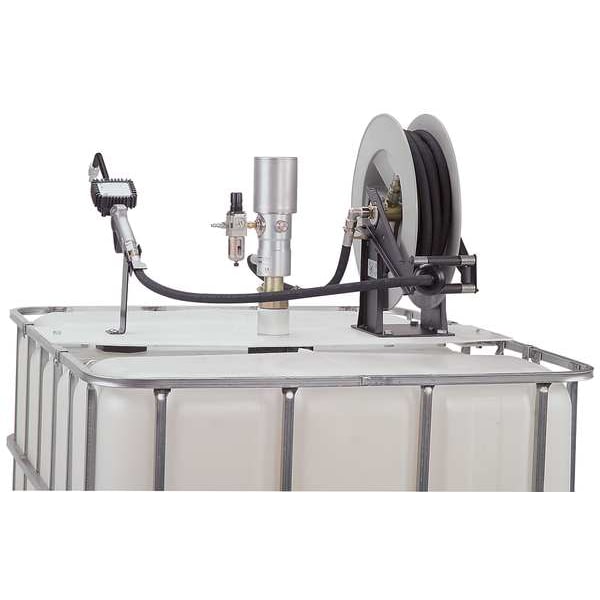

Air Drum Pump, 4.6 gpm, 600 psi, 5:1

  • Mfr # 970011-30

  • Zoro # G8537697

product price:  $2,421.99
/ea
Additional $70.00 delivery surcharge applies per item.
See details

Key Features

Air Motor Size (In.)
3 1/8 in
Consumption @ 100 PSI
12 cfm
Working Flow Max. (GPM)
4.6 gpm
Pump Ratio
5:1
Max. Air Inlet PSI
120 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
970011-30
Zoro #
G8537697
UPC #
632322003706
Country of Origin
Italy

Dimensions

Air Motor Size (In.)
3 1/8 in
Spout Length (In.)
(Flex) 9
Outlet Size
1/2 in NPTF
Adapter Connection Diameter
2 in
Hose Inside Diameter
1/2 in
Air Inlet Connection Size
1/4 in
Hose Length
360 in
Suction Tube Length
44 in
For Container Size
275 gal

Details

Item
Air Drum Pump
Consumption @ 100 PSI
12 cfm
Working Flow Max. (GPM)
4.6 gpm
Pump Ratio
5:1
Max. Air Inlet PSI
120 psi
Max. Output
4.6 gpm
Air Inlet (In.)
1/4 NPT
For Use With
Engine Oil, Gear Oil, Hydraulic Oil
Outlet Pressure Max. (PSI)
600 psi
Fluid Outlet Thread (In.)
1/2 NPTF
Min. Air Inlet Pressure
60 psi
Fluid In/Out NPT (F)
1 in NPTF / 1/2 in NPTF
Fluid Inlet Thread (In.)
1 NPTF
Compatible Chemicals
Engine Oil, Gear Oil, Hydraulic Oil
Max. Flow Rate
4.6 gpm
Power Source
Air
Min. Air Pressure
60 psi
Air Consumption
12 cfm
Includes
Auto Tip, Filter Regulator, Hold Down Brackets, Metered Control Handles, Mounting Plate, Spring Rewind Reel, Swivel
Wetted Material
Aluminum/Nitrile/Steel
For SAE Viscosity Grade - Maximum
250
Nozzle Material
Aluminum
Housing Material
Aluminum/Steel
Static Protection
Not Groundable
Noise Level
90 dB
Includes Nozzle
Yes
Standards
CE
Includes Suction Tube
Yes
Suction Tube OD
1 1/4 in
Maximum Head Pressure
600 psi
Maximum Viscosity
14,000 cps
Duty Cycle
Continuous
Discharge Tube Outlet OD
1/2 in
Maximum Flow Rate
4.6 gpm
Suction Tube Material
Steel
Maximum Fluid Temperature
150 Degrees F
Maximum Outlet Pressure
600 psi
Meter Type Included
Digital
Pump Technology
Piston
Minimum Air Pressure
120 psi
Discharge Connection Type
FNPT
Maximum Air Pressure
120 psi
Hazardous Location Class
Not Rated
For Container Type
Bucket, Drum, Jug, Pail, Tank, Tote
Includes Bung Adapter
Yes
Includes Discharge Hose
Yes
Hose Tube Material
Synthetic Rubber
Adapter Connection Standard
FNPT
Variable Speed
No
Includes Follower Plate
No Follower Plate Included
Nozzle Operation
Manual
Power Source - TS Only
Air
Chemical Compatibility
Engine Oil, Gear Lube, Hydraulic Oil
Container Cover Type Included
No Cover Included
Air Inlet Connection Type
FNPT
Housing Finish
Powder Coated
Maximum Head
1,442 ft
Includes Spout
Yes
Pressure Ratio
5:1
Discharge Tube Outlet ID
1/2 in
Type
Air-Operated

Description

Air Drum Pump, Max. Air Pressure 120 psi, Suction Tube Material Steel, Discharge Connection Type FNPT, Thermal Protection Not Applicable, Air Consumption 12 cfm, Hose Length 360 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 90 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes
