For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid

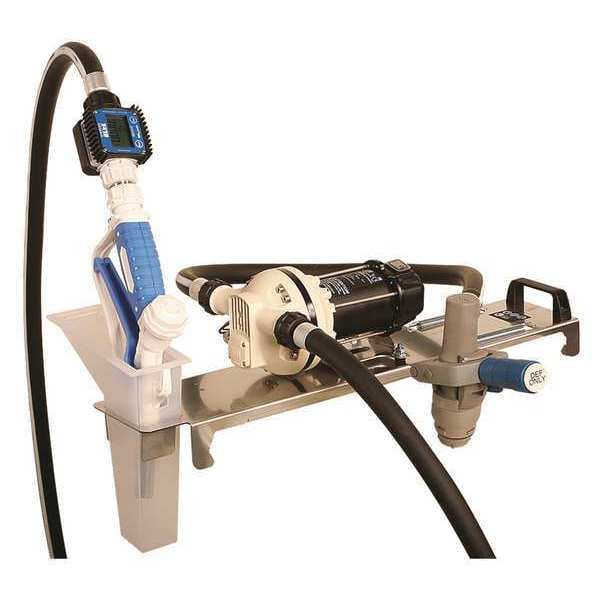

Item Electric Drum Pump
Includes Nozzle Holder, Spring Loaded Drum Mounting Bracket
Max. Viscosity 10 cps
Motor Type 2 Pole
Power Source Corded Electric
Wetted Materials EPDM, Polypropylene, Stainless Steel
Voltage 12VDC
Motor Enclosure IP55
Metered Yes
Motor RPM 2,600 RPM
Max. Liquid Temp. 104 Degrees F
Max. Temp. 104 Degrees F
Phase Single
RPM 1730
Hose Material Peroxide Cured EPDM
GPM 8
Max. GPM for Water 8
Pump Body Material Polypropylene, EPDM
DEF Compatible Yes
pH Range 9.8 to 10
Seal Material EPDM
Max. Head 48 ft.
Standards ISO
Agency Compliance ISO
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP 1/10
Max. Pressure 23 psi
Gasket Material EPDM
Housing Material Polypropylene
Suction Tube Material EPDM
Self-Priming Yes
Full Load Amps 22.0 A
Includes Spout Yes
Runs Dry Yes
Variable Speed No
Hose Cover Material Thermal Plastic
Pump Connection OD 1 in
Max. Head - Pumps 48 ft
Min. Fluid Temp. 17 Degrees F
Includes Discharge Hose Yes
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Oil Flow 8 gpm
Discharge Connection Type Hose Barb
Includes Nozzle Yes
Includes Suction Tube Yes
Max. Flow Rate 8 gpm
Max. Head Pressure 23 psi Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Discharge Tube Outlet OD 1 in
Duty Cycle Intermittent
Motor HP 1/10 hp
Housing Material - Pumps Polypropylene
Suction Tube OD 1 in
Discharge Tube Outlet ID 3/4 in
Max. Fluid Temp. 104 Degrees F Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Spout Material 316 Stainless Steel
Number of Phases 1
Includes Bung Adapter No
Suction Tube ID 3/4 in
For Container Type Drum, Tote
Plug Type Spring Clamp
Noise Level 70 dB
Hose Tube Material EPDM
Pump Connection Type Hose Barb
Diesel Exhaust Fluid Compatible Yes
Food Grade No
Nozzle Material Polypropylene
Nozzle Operation Manual
Spout Connection Type Integral to Nozzle
Explosion Proof No
Max. Outlet Pressure 23 psi
Rated Voltage 12 V DC
Grease NT
Gear Lube NT
Meter Type Included Digital
Full Load Current 22 A
Static Protection Not Groundable
Maximum Flow Rate 8 gpm
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Head 48 ft
Hazardous Location Class Not Rated
Maximum Viscosity 10 cps
Motor Horsepower 1/10 hp
Nozzle Fluid Compatibility DEF
Pump Technology Diaphragm
Maximum Head Pressure 23 psi
Housing Finish Powder Coated
Motor Enclosure Design Totally Enclosed Non-Ventilated
Meter Unit Of Measure Gallons, Liters
Maximum Outlet Pressure 23 psi
Maximum Fluid Temperature 104 Degrees F
Pump Connection ID 3/4 in
Maximum Oil Flow 8 gpm
Adapter Connection Standard Buttress
Mount Type Foot
Minimum Fluid Temperature 17 Degrees F
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Motor Speed 2,600 RPM
Power Source - TS Only Corded Electric
