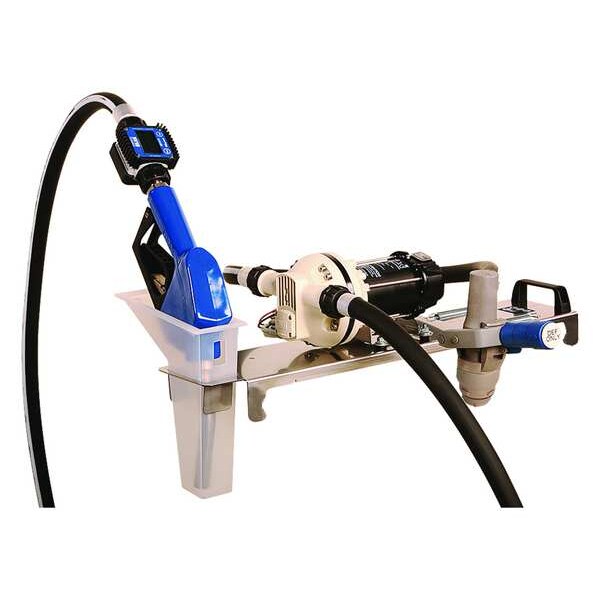

Liquidynamics Drum Topper System, 12VDC, Electric DC 33115-S2AG - main

Drum Topper System, 12VDC, Electric DC

  • Mfr # 33115-S2AG

  • Zoro # G2440089

product price: $1,788.99
/ea
Free Shipping & Returns

Key Features

For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Includes
Digital Turbine Meter, Nozzle Drip/Holder, Spring loaded SS Drum Mounting Bracket, SS Automatic Nozzle
Max. Viscosity
10 cps
Motor Type
2 Pole
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33115-S2AG
Zoro #
G2440089
UPC #
-
Country of Origin
Italy

Dimensions

Outlet Size
3/4"
Inlet Size
3/4"
Manufacturers Warranty Length
30 Days Manufacturing Defects, 2 yr. Pump
Hose Length
12 ft
Hose Outside Dia.
1 in
Overall Length
40 in
Height Above Container
12 in
Spout Length
6 in
Hose Inside Dia.
3/4 in
Cord Length
18 ft
Suction Tube Length
48 in
For Container Size
55 gal, 275 gal, 330 gal
Spout Discharge Size
3/4 in

Details

For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Item
Electric Operated Drum Pump
Includes
Digital Turbine Meter, Nozzle Drip/Holder, Spring loaded SS Drum Mounting Bracket, SS Automatic Nozzle
Max. Viscosity
10 cps
Motor Type
2 Pole
Power Source
Electric
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Voltage
12VDC
Motor Enclosure
IP55
Metered
Yes
Motor RPM
2,600 RPM
Max. Temp.
104 Degrees F
DEF Compatible
Yes
Standards
CE, IP 55, ISO 22241
RPM
1730
Housing Material
Polypropylene / EPDM
Max. Liquid Temp.
104 Degrees F
Max. GPM for Water
8
Hose Material
Peroxide Cured EPDM
Max. Head
48 ft.
GPM
8
Agency Compliance
ISO
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Pump Body Material
Polypropylene, EPDM
Gasket Material
EPDM
HP
1/10
pH Range
9.8 to 10
Phase
1
Max. Pressure
23 psi
Seal Material
EPDM
Max. Fluid Temp.
104 Degrees F
Suction Tube ID
3/4 in
Includes Nozzle
Yes
Discharge Tube Outlet ID
3/4 in
Hose Cover Material
Thermal Plastic
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Includes Bung Adapter
No
Full Load Amps
22.0 A
Housing Material - Pumps
Polypropylene
Hose Tube Material
EPDM
Nozzle Material
Stainless Steel
Includes Discharge Hose
Yes
Spout Material
316 Stainless Steel
Runs Dry
Yes
For Container Type
Drum, Tote
Max. Oil Flow
8 gpm
Food Grade
No
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Motor HP
1/10 hp
Plug Type
Spring Clamp
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Variable Speed
No
Discharge Tube Outlet OD
1 in
Diesel Exhaust Fluid Compatible
Yes
Suction Tube Material
EPDM
Min. Fluid Temp.
17 Degrees F
Includes Spout
Yes
Max. Flow Rate
8 gpm
Pump Connection OD
1 in
Nozzle Operation
Automatic
Spout Connection Type
Integral to Nozzle
Pump Connection Type
Hose Barb
Discharge Connection Type
Hose Barb
Self-Priming
Yes
Number of Phases
1
Max. Head - Pumps
48 ft
Max. Head Pressure
23 psi
Includes Suction Tube
Yes
Suction Tube OD
1 in
Noise Level
70 db
Duty Cycle
Intermittent
Max. Outlet Pressure
23 psi
Gear Lube
NT
Rated Voltage
12V DC
Grease
NT
Explosion Proof
No

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 12 V DC, Plug Type Spring Clamp, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 48 in, Cord Length 18 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Automatic, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
