  9. Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

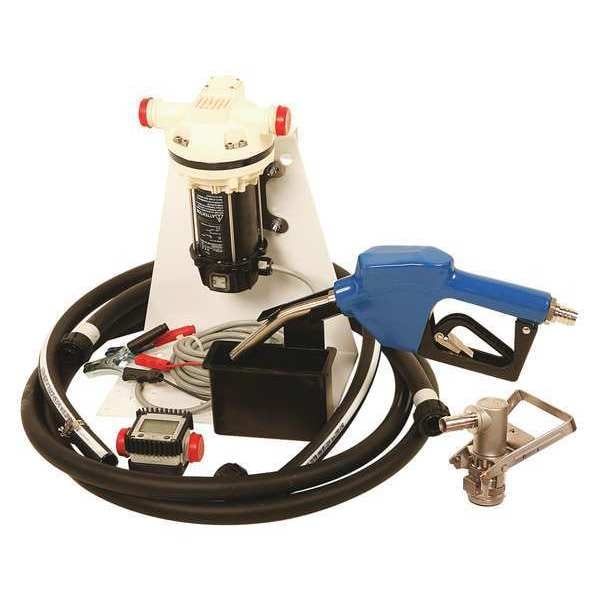

Liquidynamics Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet DS12H20TASXXRSV - main

Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

  • Mfr # DS12H20TASXXRSV

  • Zoro # G4573348

product price: $1,733.99
/ea
Free Shipping & Returns

Key Features

Voltage
12VDC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS12H20TASXXRSV
Zoro #
G4573348
UPC #
-
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Manufacturers Warranty Length
7 yr. Pump, 1 yr. Dispensing System
Overall Height
16"
Outlet Size
3/4" Barb
Overall Length
48 in
Overall Width
12"
Hose Length
20 ft
Hose Dia.
3/4"
Cord Length
18 ft
Suction Tube Length
48 in
Hose Outside Dia.
1 in
For Container Size
55 gal, 275 gal, 330 gal
Spout Length
6 in
Height Above Container
4 in
Hose Inside Dia.
3/4 in
Spout Discharge Size
3/4 in

Details

Voltage
12VDC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
Seal Material
EPDM
Pump Design
Nutating Diaphragm
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
10 cps
Item
Electric Operated Drum Pump
Motor Enclosure
IP55
Amps
3.5
Agency Compliance
ISO
Shaft Material
Stainless Steel
Max. Head
48 ft.
Motor Type
2 Pole
Phase
1
Metered
No
Adapter Material
316 Stainless Steel
Max. Specific Gravity
1.09
Pressure Range
23 psi
Max. GPM for Water
8
Duty Cycle
Intermittent
Nozzle Type
Automatic
pH Range
5.0 to 10
Hose Material
Peroxide Cured EPDM
Duty
Intermittent
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Gasket Material
EPDM
Max. Temp.
104 Degrees F
Inlet
3/4"
Bypass Valve
Internal
Adapter Type
RSV
Max. Pressure
28 psi
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Suction Lift
6 ft.
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Max. Liquid Temp.
104 Degrees F
Hz
60
Pump Body Material
Polypropylene
Nozzle Material
Stainless Steel
Includes
Coupler, Drip Cup, Hose, Meter, Nozzle, Nozzle Hanger, Side Mount Hanger
Features
Dispenses 8 gpm
Bearing Type
Sealed Ball
Diesel Exhaust Fluid Compatible
Yes
Discharge Connection Type
Hose Barb
Hose Cover Material
Thermal Plastic
Max. Flow Rate
8 gpm
Suction Tube Material
EPDM
Motor HP
1/10 hp
For Container Type
Drum, Tote
Power Source
Electric
Max. Oil Flow
8 gpm
Spout Material
316 Stainless Steel
Includes Bung Adapter
No
Housing Material - Pumps
Polypropylene
Suction Tube ID
3/4 in
Motor RPM
2,600 RPM
Noise Level
70 db
Runs Dry
Yes
Plug Type
Spring Clamp
Suction Tube OD
1 in
Food Grade
No
Nozzle Operation
Automatic
Max. Fluid Temp.
104 Degrees F
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Discharge Tube Outlet OD
1 in
Pump Connection OD
1 in
Max. Head Pressure
23 psi
Includes Suction Tube
Yes
Max. Head - Pumps
48 ft
Variable Speed
No
Includes Discharge Hose
Yes
Pump Connection Type
Hose Barb
Hose Tube Material
EPDM
Spout Connection Type
Integral to Nozzle
Includes Spout
Yes
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Min. Fluid Temp.
17 Degrees F
Includes Nozzle
Yes
Full Load Amps
22.0 A
Discharge Tube Outlet ID
3/4 in
Number of Phases
1
Gear Lube
NT
Explosion Proof
No
Grease
NT
Rated Voltage
12V DC
Max. Outlet Pressure
23 psi

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 12 V DC, Plug Type Spring Clamp, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 20 ft, Suction Tube Length 48 in, Cord Length 18 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Automatic, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
