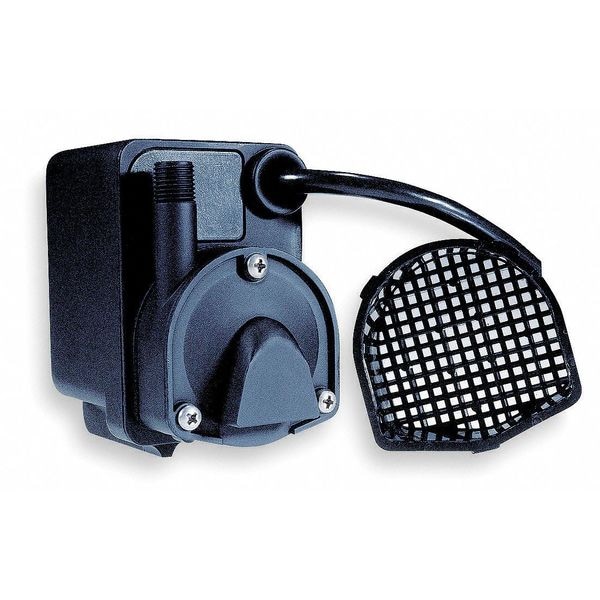

Pump, 4-17/32 In. L, 2-5/8 In. W

  • Mfr # 518400

  • Zoro # G3323083


product price: $118.99
/ea
Free Shipping & Returns

Key Features

HP
1/40 hp
Voltage
115V
Full Load Amps
0.8 A
Cord Length
6 ft
Impeller Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
518400
Zoro #
G3323083
UPC #
010121189683
Country of Origin
Mexico

Dimensions

Cord Length
6 ft
Height
4 27/32 in
Width
2 5/8 in
Length
4 17/32 in
Overall Length
4.8 in
Overall Height
4.2 in
Overall Width
2.8 in
Compatible Discharge Pipe Size
1/4 in

Details

Item
Centrifugal Pump
HP
1/40 hp
Voltage
115V
Full Load Amps
0.8 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
12.2 ft
Seal Material
Fluoroelastomer
Outlet
1/4 in (M)NPT
Housing Material
Nylon
Inlet Type
Hooded
Hz
60
Overload Protection
yes
GPH of Water @ 10 Ft. of Head
130
GPH of Water @ 5 Ft. of Head
240
Features
Submersible
GPH of Water @ 1 Ft. of Head
300
Agency Compliance
UL
Inlet
Hooded
Amps
0.8 A
Standards
cCSAus Listed
Discharge Type
NPT
Electrical Connection Type
Plug-In
Horsepower
1/40 hp
Maximum Feet of Head
12.2 ft
Pumping Application
Water Displays, Water Transfer or Recirculation
Duty Cycle
Continuous
Frequency
60 Hz
Pump Housing Material
Plastic
Flow Rate @ 10 ft of Head (Maximum)
130 gph
Seal Type
Mechanical
Intake Type
Screened
Series
PE-2H
Flow Rate @ 1 ft of Head (Maximum)
300 gph
Nameplate Voltage
115V AC
Maximum Media Temperature
120 Degrees F
Motor Sealing
Epoxy Encapsulated
Flow Rate @ 5 ft of Head (Maximum)
240 gph
Maximum Flow Rate
300 gph

Description

Centrifugal Pump, Pump Housing Material Plastic, Horsepower 1/40 hp, Nameplate Voltage 115V AC, Flow Rate @ 1 ft of Head (Maximum) 300 gph, Flow Rate @ 5 ft of Head (Maximum) 240 gph, Flow Rate @ 10 ft of Head (Maximum) 130 gph, Maximum Feet of Head 12.2 ft, Compatible Intake Pipe Size Not Applicable, Compatible Discharge Pipe Size 1/4 in, Intake Type Screened, Discharge Type NPT, Cord Length 6 ft, Motor Sealing Epoxy Encapsulated, Amps 0.8 A, Duty Cycle Continuous
