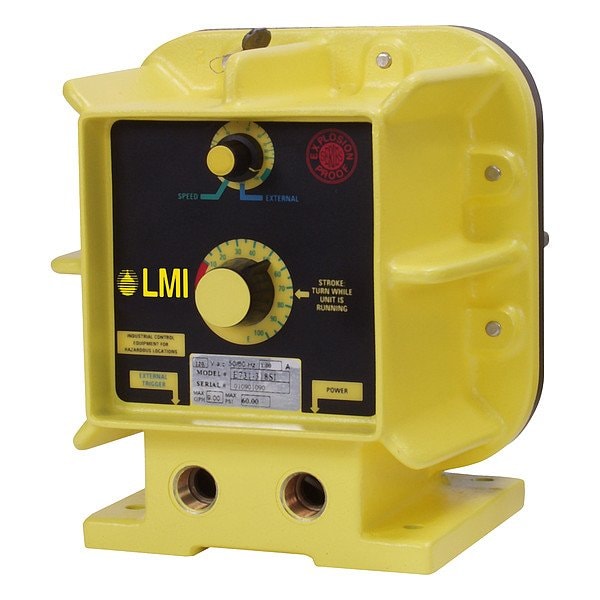

Chemical Metering Pump, 8 gpd, PVDF Head
- Mfr # E731-313NI
- Zoro # G216292524
product price:Â
$
7,196.99
/ea
Free Shipping & Returns
Key Features
Stroke Rate (Maximum)
100 stroke/min
Hazardous Location Specification
Class I, Div 1, Group C, D, Class II, Div 1, Group E, F, G
Overall Length
12.9 in
Housing Material
Cast Aluminum/Cast Iron
Overall Height
9.1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- E731-313NI
- Zoro #
- G216292524
- UPC #
- -
- Country of Origin
- United States
- Stroke Rate (Maximum)
- 100 stroke/min
- Hazardous Location Specification
- Class I, Div 1, Group C, D, Class II, Div 1, Group E, F, G
- Housing Material
- Cast Aluminum/Cast Iron
- Operating Pressure (Maximum)
- 60 psi
- Item
- Chemical Metering Pump
- Flow Rate (Maximum)
- 8 gpd
- Control Programs
- Manual Control, Pulse
- Standards
- c-UL, UL
- Nameplate Voltage
- 115V AC
- Phase
- Single
- Check Ball Material
- Ceramic
- Fitting Material
- PVDF
- Head Material
- PVDF
- Seal Material
- PVDF/PTFE
- Priming
- Manual
- Reproducibility
- +/-1.0%
- Viscosity (Maximum)
- 400 cps
- Diaphragm Material
- PTFE
- Hazardous Location Class
- Class I, Div 1, Group C, D, Class II, Div 1, Group E, F, G
- Degassing Valve Included
- No
- Turn Down Ratio
- 400:1
- Media Temperature (Maximum)
- 122 Degrees F
- Pump Drive Type
- Solenoid
Dimensions
- Overall Length
- 12.9 in
- Overall Height
- 9.1 in
- Overall Width
- 8 in
- Discharge Connection Size
- 1/2 in
- Intake Connection Size
- 1/2 in
- Wire Rope Length
- 12.9 in
- Length
- 12.9 in
Description
Chemical Metering Pump, Chemical Compatibility Not Applicable, Control Programs Manual Control, Pulse, Diaphragm Material PTFE, Discharge Connection Size 1/2 in, Discharge Connection Type Not Applicable, Fitting Material PVDF, Flow Rate (Maximum) 8 gpd, Head Material PVDF, Intake Connection Size 1/2 in, Intake Connection Type Not Applicable, Nameplate Voltage 115V AC, Operating Pressure (Maximum) 60 psi, Reproducibility +/-1.0 Percent, Seal Material PVDF/PTFE, Turn Down Ratio 400:1
Restrictions
This item has been restricted from sale in the following states:
CA
