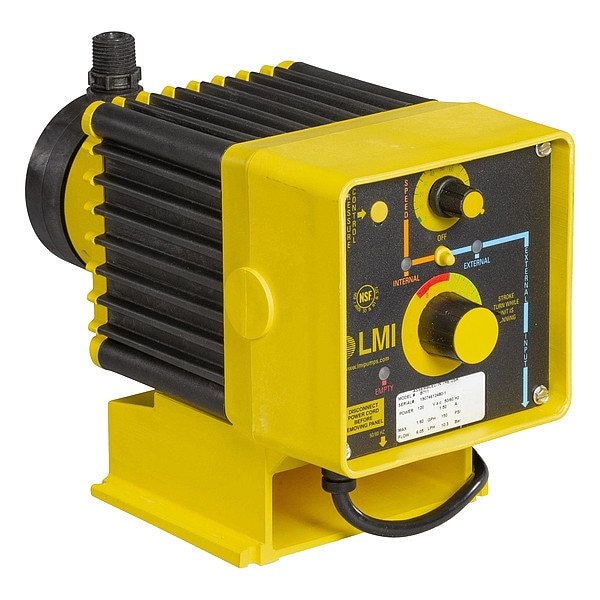

Chemical Metering Pump, 96 gpd, PVC Head
- Mfr # C721-D60HI
- Zoro # G316292585
product price:Â
$
3,626.99
/ea
Free Shipping & Returns
Key Features
Overall Width
5.7 in
Operating Pressure (Maximum)
100 psi
Standards
CE Certified, CUL, NSF 372, NSF 50, NSF 61, UL
Housing Material
Thermoplastic
Nameplate Voltage
115V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- C721-D60HI
- Zoro #
- G316292585
- UPC #
- -
- Country of Origin
- United States
- Operating Pressure (Maximum)
- 100 psi
- Standards
- CE Certified, CUL, NSF 372, NSF 50, NSF 61, UL
- Housing Material
- Thermoplastic
- Nameplate Voltage
- 115V AC
- Turn Down Ratio
- 1000:1
- Stroke Rate (Maximum)
- 100 stroke/min
- Pump Drive Type
- Solenoid
- Control Programs
- Manual Control, Pulse
- Check Ball Material
- Ceramic
- Flow Rate (Maximum)
- 96 gpd
- Frequency
- 50/60 Hz
- Head Material
- PVC
- Item
- Chemical Metering Pump
- Fitting Material
- PVC
- Phase
- Single
- Reproducibility
- +/-1.0%
- Seal Material
- Polyprel
- Viscosity (Maximum)
- 400 cps
- Diaphragm Material
- PTFE
- Media Temperature (Maximum)
- 122 Degrees F
- Degassing Valve Included
- No
- Priming
- Manual
Dimensions
- Overall Width
- 5.7 in
- Overall Height
- 12.26 in
- Overall Length
- 14.74 in
- Intake Connection Size
- 3/8 in
- Discharge Connection Size
- 3/8 in
- Wire Rope Length
- 14.74 in
- Length
- 14.74 in
Description
Chemical Metering Pump, Chemical Compatibility Not Applicable, Control Programs Manual Control, Pulse, Diaphragm Material PTFE, Discharge Connection Size 3/8 in, Discharge Connection Type Not Applicable, Fitting Material PVC, Flow Rate (Maximum) 96 gpd, Head Material PVC, Intake Connection Size 3/8 in, Intake Connection Type Not Applicable, Nameplate Voltage 115V AC, Operating Pressure (Maximum) 100 psi, Reproducibility +/-1.0 Percent, Seal Material Polyprel, Turn Down Ratio 1000:1
Restrictions
This item has been restricted from sale in the following states:
CA
