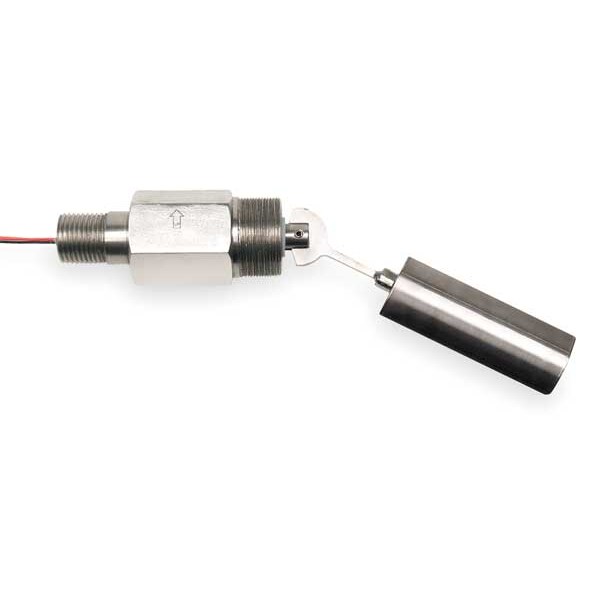

SPST Tank Liquid Level Switch Selectable 240VAC 150 psi

  • Mfr # M4190

  • Zoro # G1806463

product price:  $279.99
/ea
Free Shipping & Returns

Key Features

Voltage
240VAC
Max. Pressure
150 psi
Max. Voltage
240 V
Stem Material
304 Stainless Steel
Operating Temp. Range
302 Degrees F Max.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M4190
Zoro #
G1806463
UPC #
094703649871
Country of Origin
United States

Dimensions

Float Dia.
1.0 in
Conduit Size
1 in
Tank Connection Size
1 in NPT
Overall Length
9.26 in
Float Length
4 in
Stem Length
5.81 in
Stem Thread Size
1 in NPT
Float Diameter
1 in
Wire Rope Length
9.26 in

Details

Voltage
240VAC
Max. Pressure
150 psi
Item
Alternator Closed Liquid Level Switch
Max. Voltage
240 V
Stem Material
304 Stainless Steel
Operating Temp. Range
302 Degrees F Max.
Mounting
Side
Contact Form
1NO/1NC
Float Specific Gravity
0.6
Max. Current
1 A
Float Switch Contact Form
SPST
Float Material
316 Stainless Steel
Float Switch Float Material
Stainless Steel
Switch Function
Selectable
Body Material
304 Stainless Steel
Electrical Connections
22 ga PTFE Coated 24 in Leads
VA Rating
100
Features
Corrosion Resistance
Series
M4190
Product Type
Alternator Closed Liquid Level Switch
Minimum Media Specific Gravity
0.73
Current Rating - Maximum
0.28 A
Voltage Rating - Maximum
24 V DC, 120 V AC
Electrical Connection
Pre-Wired Cable
Proof Pressure
150 psi
Operating Temperature - Maximum
302 Degrees F
Switch Structure
SPDT
Mounting Style
Side

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1 in NPT, Max. Pressure 150 psi, VA Rating 100, Operating Temp. Range 302 Degrees F Max., Overall Length 9.26 in, Float Material 316 Stainless Steel, Float Length 4 in, Float Dia. 1.0 in, Stem Material 304 Stainless Steel, Stem Length 5.81 in, Height -, Width -, Contact Form 1NO/1NC, Max. Current 1 A, Max. Voltage 240 V, Body Material 304 Stainless Steel, Conduit Size 1 in
