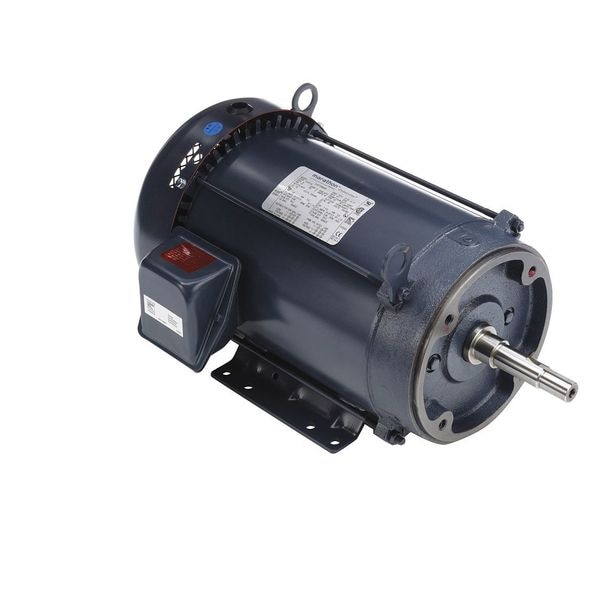

Close-Coupled Pump Motor, 230/460V, 10 HP

  • Mfr # 215TTFBD6006
  • Zoro # G6418441
product price:
$
1,687.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10 hp
RPM Range
3,001-3,600
Nameplate RPM
3,520
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTFBD6006
Zoro #
G6418441
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
17 5/8 in
Shaft Length
4 1/4 in
Overall Length
21 7/8 in
Shaft Dia.
7/8 in
Bolt Circle Dia.
7 1/4 in
Height
11 in
Body Dia.
9.5 in
Frame Size
215JM
Shaft Diameter
7/8 in
Bolt Circle Diameter
7 1/4 in
Body Diameter
9.5 in
Wire Rope Length
21 7/8 in
Length
21 7/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
10 hp
RPM Range
3,001-3,600
Nameplate RPM
3,520
Voltage
230V AC, 460V AC
Frame
215JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Phase
Three
Ins. Class
F
Duty
Continuous
CC Number
CC003A
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Full Load Amps
23.6/11.8 A
Hz
60 Hz
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Inverter Rated
Inverter Rated
Motor Bearings
Ball
Frame Material
Steel
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Motor Shaft Design
JM Threaded
Motor Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Standards
CE Mark, CSA Certified, UL Recognized
Nominal Efficiency
90.2 %
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
170 lb
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Inverter Rating
10:1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
NEMA Design
B
Duty Cycle
Continuous
Conduit Box Position
F1, F2
Shaft Thread Type
JM
NEMA Design Class
B
Application
Pump
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz
Insulation Class
F
Product Type
Pump Motor
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Full Load Current @ 60 Hz
23.6/11.8 A
Bearing Type
Ball
Shaft Design
Threaded

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 23.6/11.8, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 17 5/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
