Shop MARATHON

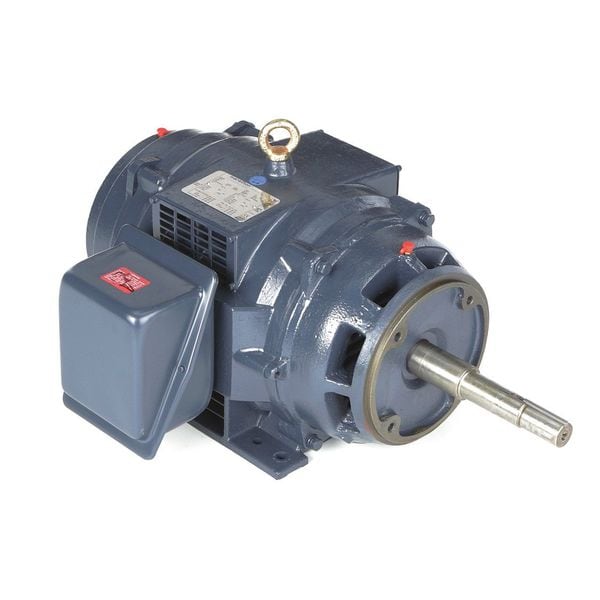

CC Pump Motor, 3-Phase, 25 HP, 3450 rpm

  • Mfr # 256TTDBD6012

  • Zoro # G2219765

product price:
$
2,320.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25 hp
RPM Range
3,001-3,600
Nameplate RPM
3,560
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
256TTDBD6012
Zoro #
G2219765
UPC #
-
Country of Origin
Mexico
Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
25 hp
RPM Range
3,001-3,600
Nameplate RPM
3,560
Voltage
230/460V AC
Frame
256JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Ins. Class
F
Motor Shaft Design
JP Threaded
CC Number
CC003A
Inverter Rated
Inverter Rated
Phase
Three
Motor Enclosure Design
Open Dripproof
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Duty
Continuous
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Frame Material
Cast Iron
Motor Thermal Protection
None
Motor Sub Application
Close-Coupled Pump
Standards
CE Mark, CSA Certified, UL Recognized
Full Load Amps
59.5/29.7 A
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
NEMA Premium Efficient
Nominal Efficiency
91.7 %
Motor Frame Material
Cast Iron
Motor Bearings
Ball
Motor Application
Pump
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Weight
309 lb
No. of Speeds
1
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Ambient Temperature - Maximum
40 Degrees C
Application
Pump
NEMA Design Class
B
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60 Hz
Bearing Type
Ball
Mounting Position
Horizontal
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Shaft Thread Type
JP
Constant Torque Rating
2:1 Constant Torque
Full Load Current @ 60 Hz
59.5/29.7 A
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Threaded
Number of Speeds
1
Insulation Class
F

Description

Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 59.5/29.7, Height 13 1/2 in, HP 25, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
