Shop MARATHON

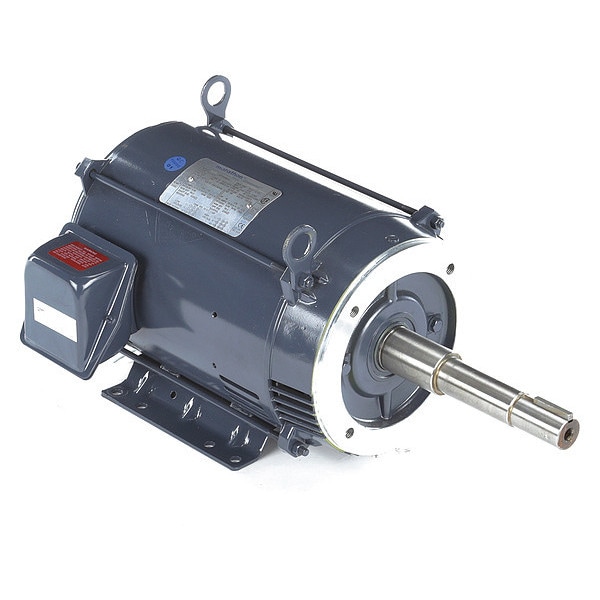

CC Pump Motor, 3-Phase, 15 HP, 3450 rpm

  • Mfr # 215TTDBD6012
  • Zoro # G8818957
product price:
$
1,412.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
15 hp
RPM Range
3,001-3,600
Nameplate RPM
3,515
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
215TTDBD6012
Zoro #
G8818957
UPC #
-
Country of Origin
Mexico
Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
15 hp
RPM Range
3,001-3,600
Nameplate RPM
3,515
Voltage
230V AC, 460V AC
Frame
215JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Standards
CE Mark, CSA Certified, UL Recognized
Hz
60 Hz
Motor Bearings
Ball
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Nominal Efficiency
90.9 %
Motor Enclosure Design
Open Dripproof
CC Number
CC003A
Inverter Rated
Inverter Rated
Motor Sub Application
Close-Coupled Pump
Duty
Continuous
Motor Application
Pump
Phase
Three
Ins. Class
F
Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Full Load Amps
36.0/18.0 A
Motor Efficiency Group
NEMA Premium Efficient
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Weight
165 lb
Duty Cycle
Continuous
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Mounting Position
Horizontal
Application
Pump
Shaft Design
Keyed
Shaft Thread Type
JP
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Number of Speeds
1
Bearing Type
Ball
Constant Torque Rating
2:1 Constant Torque
Efficiency Rating
Premium Efficiency (IE3)
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Full Load Current @ 60 Hz
36.0/18.0 A

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JP, Hz 60 Hz, Full Load Amps 36.0/18.0, Height 11 in, HP 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
