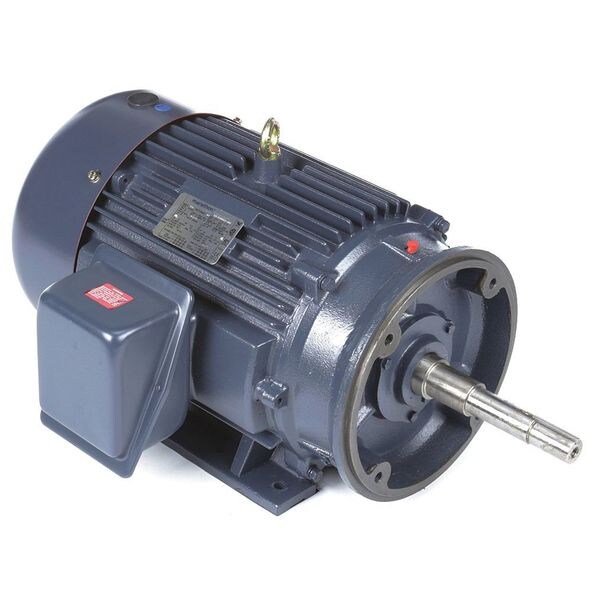

CC Pump Motor, 3-Phase, TEFC, 25HP, 230/460V

  • Mfr # 284TTFCD6037

  • Zoro # G9823852

product price:  $3,364.99
/ea
Additional $220.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
284TTFCD6037
Zoro #
G9823852
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 3/8 in
Shaft Length
8 5/8 in
Overall Length
30 3/8 in
Length Less Shaft
21 3/4 in
Height
17 3/16 in
Body Dia.
15.6 in
Bolt Circle Dia.
11 in
Bolt Circle Diameter
11 in
Body Diameter
15.6 in
Frame Size
284JP
Shaft Diameter
1 3/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
25
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230/460V AC
Frame
284JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Thermal Protection
None
CC Number
CC003A
Motor Bearings
Ball
Standards
CE Mark, CSA Certified, UL Recognized
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Duty
Continuous
Motor Frame Material
Cast Iron
Full Load Amps
60.0/30.0 A
Frame Material
Cast Iron
Motor Sub Application
Close-Coupled Pump
Motor Efficiency Group
NEMA Premium Efficient
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
93.6 %
Phase
Three
Ins. Class
F
Motor Shaft Design
Keyed, Threaded
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Weight
500 lb
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Inverter Rating
10:1
Conduit Box Position
F1, F2
Shaft Type
JP Threaded
Insulation Class
F
Shaft Design
Keyed
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Shaft Thread Type
JP
Bearing Type
Ball
Number of Speeds
1
Mounting Position
Horizontal
NEMA Design Class
B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Pump Motor
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
60.0/30.0 A

Description

Close-Coupled Pump Motor, Body Dia. 15.6 in, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 284JP, Hz 60 Hz, Full Load Amps 60.0/30.0, Height 17 3/16 in, HP 25, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 21 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
