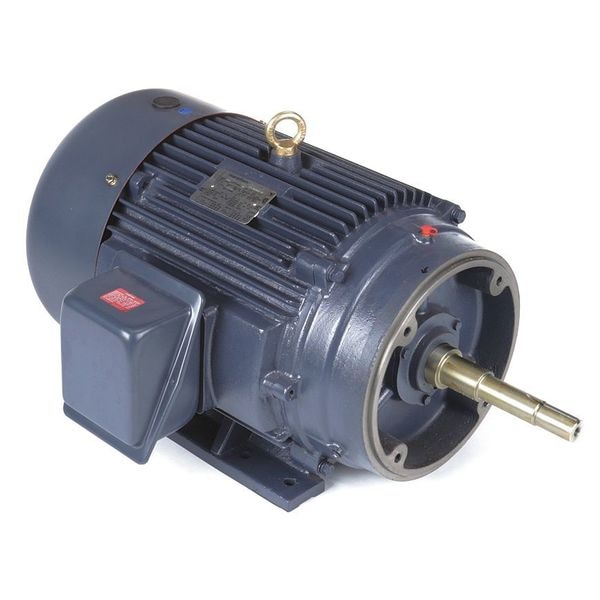

CC Pump Motor, 3-Phase, TEFC, 40HP, 230/460V

  • Mfr # 324TTFCD6012

  • Zoro # G9907274

product price:
$
4,991.99
/ea
Additional $275.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
40 hp
RPM Range
3,001-3,600
Nameplate RPM
3,565
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
324TTFCD6012
Zoro #
G9907274
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
11 in
Shaft Dia.
1 1/4 in
Overall Length
36 15/16 in
Length Less Shaft
25 15/16 in
Bolt Circle Dia.
11 in
Body Dia.
17.6 in
Height
19 1/2 in
Body Diameter
17.6 in
Shaft Diameter
1 1/4 in
Bolt Circle Diameter
11 in
Frame Size
324JP
Wire Rope Length
36 15/16 in
Length
36 15/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
40 hp
RPM Range
3,001-3,600
Nameplate RPM
3,565
Voltage
230/460V AC
Frame
324JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Application
Pump
Motor Sub Application
Close-Coupled Pump
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Motor Frame Material
Cast Iron
Motor Bearings
Ball
Motor Thermal Protection
None
Phase
Three
Nominal Efficiency
92.4 %
Motor Shaft Design
Keyed, Threaded
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Standards
CE, CSA, UL Listed
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Full Load Amps
92.0/46.0 A
Hz
60 Hz
CC Number
CC003A
Frame Material
Cast Iron
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Inverter Rated
Inverter Rating
10:1
Weight
643 lb
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Conduit Box Position
F1, F2
Shaft Type
JP Threaded
Application
Pump
Frequency
60 Hz
Shaft Thread Type
JP
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Premium Efficiency (IE3)
NEMA Design Class
B
Shaft Design
Keyed
Bearing Type
Ball
Full Load Current @ 60 Hz
92.0/46.0 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
Product Type
Pump Motor
Number of Speeds
1

Description

Close-Coupled Pump Motor, Body Dia. 17.6 in, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 324JP, Hz 60 Hz, Full Load Amps 92.0/46.0, Height 19 1/2 in, HP 40, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 25 15/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
