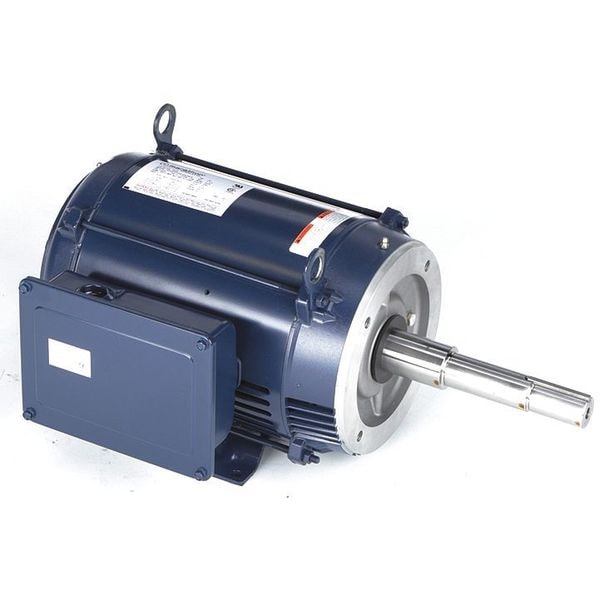

CC Pump Motor, Cap Strt/Ind Run, 7-1/2 HP

  • Mfr # 213TCDW7003

  • Zoro # G5634867

product price:
$
1,350.99
/ea
Additional $60.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Capacitor-Start
HP
7 1/2 hp
RPM Range
3,001-3,600
Nameplate RPM
3,470
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TCDW7003
Zoro #
G5634867
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
14 3/16 in
Shaft Dia.
1 1/4 in
Overall Length
22 5/16 in
Shaft Length
8 1/8 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
9.5 in
Height
11 in
Shaft Diameter
1 1/4 in
Bolt Circle Diameter
7 1/4 in
Body Diameter
9.5 in
Frame Size
213JP
Wire Rope Length
22 5/16 in
Length
22 5/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start
HP
7 1/2 hp
RPM Range
3,001-3,600
Nameplate RPM
3,470
Voltage
230V AC
Frame
213JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Frame Material
Steel
Phase
Single
Motor Shaft Design
Keyed
Motor Enclosure Design
Open Dripproof
Motor Thermal Protection
None
Frame Material
Steel
Motor Bearings
Ball
Duty
Continuous
Motor Efficiency Group
Standard Efficient
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Full Load Amps
37 A
Motor Sub Application
Close-Coupled Pump
Inverter Rated
Not Inverter Rated
Nominal Efficiency
78.5 %
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Application
Pump
Standards
CE Mark, CSA Certified, UL Recognized
Hz
60 Hz
Duty Cycle
Continuous
Weight
118 lb
No. of Speeds
1
NEMA Design
L
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Conduit Box Position
F1
Shaft Type
Keyed
Insulation Class
B
Application
Pump
Shaft Design
Keyed
Bearing Type
Ball
Frequency
60 Hz
Product Type
Pump Motor
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
37.0 A
NEMA Design Class
L
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Shaft Thread Type
JP

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 213JP, Hz 60 Hz, Full Load Amps 37.0, Height 11 in, HP 7 1/2, Ins. Class B, Inverter Rated Not Inverter Rated, Length Less Shaft 14 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
