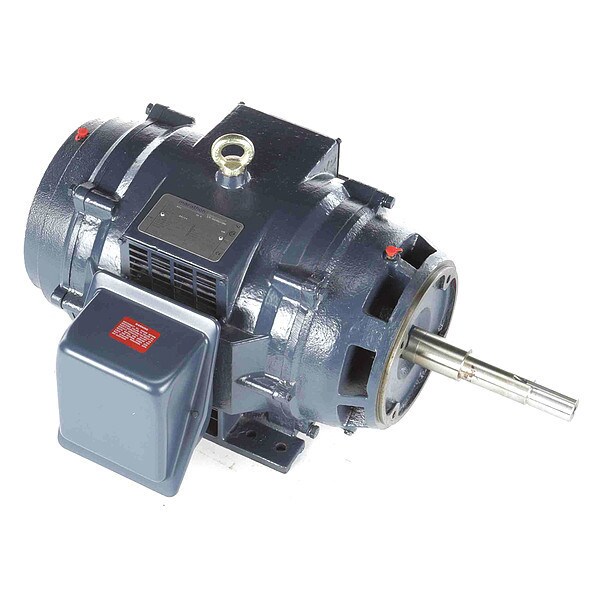

Close-Coupled Pump Motor, 10 HP
Mfr # 256TTDBD6085
Zoro # G6420970
product price: $2,200.99
/ea
Item requires special delivery charges. A $180.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
10
RPM Range
1,101-1,200
Nameplate RPM
1,180
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
256TTDBD6085
Zoro #
G6420970
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
20 3/4 in
Shaft Dia.
1 1/4 in
Overall Length
28 7/8 in
Shaft Length
8 1/4 in
Height
13 1/2 in
Bolt Circle Dia.
7 1/4 in
Body Dia.
11.8 in
Description
Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 25.6/12.8, Height 13 1/2 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
