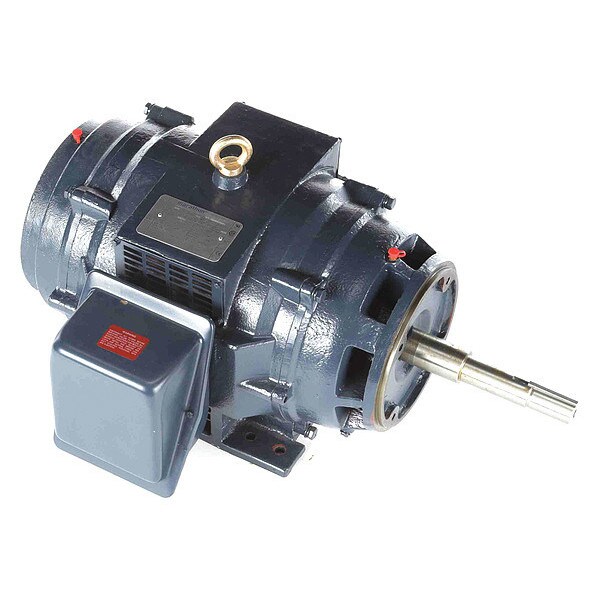

Close-Coupled Pump Motor, 10 HP, 575V

  • Mfr # 256TTDBD6095
  • Zoro # G6420961
product price:
$
2,197.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10 hp
RPM Range
1,101-1,200
Nameplate RPM
1,180
Voltage
575V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
256TTDBD6095
Zoro #
G6420961
UPC #
-
Country of Origin
Mexico
Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
10 hp
RPM Range
1,101-1,200
Nameplate RPM
1,180
Voltage
575V AC
Frame
256JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Inverter Rated
Inverter Rated
Full Load Amps
10.3 A
Motor Enclosure Design
Open Dripproof
Motor Efficiency Group
NEMA Premium Efficient
CC Number
CC003A
Motor Bearings
Ball
Motor Frame Material
Steel
Standards
CE Mark, CSA Certified, UL Recognized
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Application
Pump
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Frame Material
Steel
Motor Sub Application
Close-Coupled Pump
Phase
Three
Nominal Efficiency
91.7 %
Motor Thermal Protection
None
Motor Shaft Design
Keyed, Threaded
Duty
Continuous
Voltage Compatibility
575V AC
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Weight
320 lb
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Duty Cycle
Continuous
Conduit Box Position
F1, F2
Ambient Temperature - Maximum
40 Degrees C
Shaft Thread Type
JP
Product Type
Pump Motor
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Number of Speeds
1
Application
Pump
Constant Torque Rating
2:1 Constant Torque
Full Load Current @ 60 Hz
10.3 A
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Insulation Class
F
NEMA Design Class
B
Mounting Position
Horizontal

Description

Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 10.3, Height 13 1/2 in, HP 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
