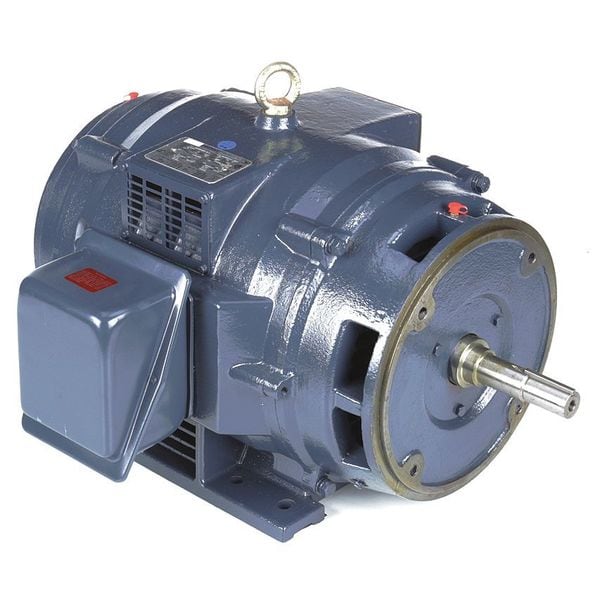

Close-Coupled Pump Motor, 3-Phase, 50 HP

  • Mfr # 324TTDBD6007

  • Zoro # G9922577

product price:  $4,270.99
/ea
Additional $290.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
50
RPM Range
3,001-3,600
Nameplate RPM
3,565
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
324TTDBD6007
Zoro #
G9922577
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
28 15/16 in
Length Less Shaft
23 7/16 in
Shaft Dia.
1 1/4 in
Shaft Length
5 1/2 in
Bolt Circle Dia.
11 in
Body Dia.
15.4 in
Height
17 15/16 in
Shaft Diameter
1 1/4 in
Frame Size
324JM
Bolt Circle Diameter
11 in
Body Diameter
15.4 in
Wire Rope Length
28 15/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
50
RPM Range
3,001-3,600
Nameplate RPM
3,565
Voltage
230/460V AC
Frame
324JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Inverter Rated
Inverter Rated
Motor Bearings
Ball
CC Number
CC003A
Frame Material
Steel
Full Load Amps
115.0/57.5
Duty
Continuous
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
93 %
Hz
60 Hz
Motor Enclosure Design
Open Dripproof
Ins. Class
F
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Phase
Three
Standards
CE, CSA, EISA2007, IP 22, UL
Motor Efficiency Group
NEMA Premium Efficient
Motor Frame Material
Steel
Motor Shaft Design
Keyed, Threaded
Motor Application
Pump
Motor Shaft Rotation
CW/CCW
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Weight
680 lb
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Shaft Type
Keyed
Bearing Type
Ball
Frequency
60 Hz
Efficiency Rating
Premium Efficiency (IE3)
Ambient Temperature - Maximum
40 Degrees C
Application
Pump
Mounting Position
Horizontal
Product Type
Pump Motor
Number of Speeds
1
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Shaft Thread Type
JM
Insulation Class
F
Full Load Current @ 60 Hz
115.0/57.5 A
Constant Torque Rating
2:1 Constant Torque

Description

Close-Coupled Pump Motor, Body Dia. 15.4 in, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 324JM, Hz 60 Hz, Full Load Amps 115.0/57.5, Height 17 15/16 in, HP 50, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 23 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
