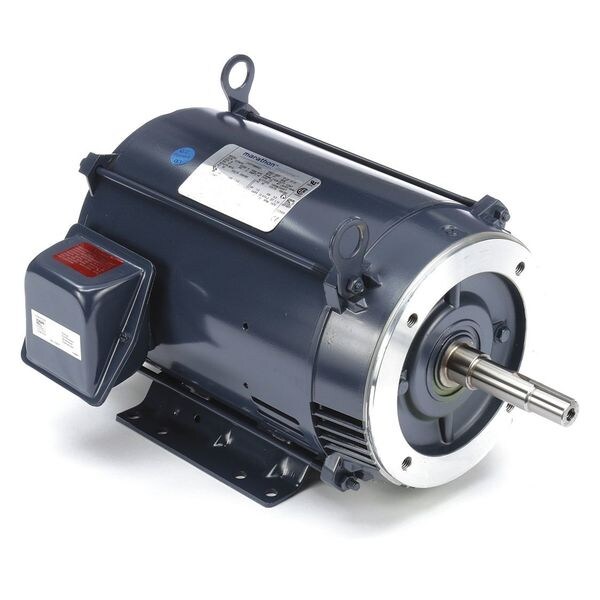

Close-Coupled Pump Motor, 3-Phase, 10 HP
Mfr # 215TTDBD6032
Zoro # G9824254
product price:Â
$
1,348.99
/ea
Additional $215.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
HP
10 hp
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230/460V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215TTDBD6032
- Zoro #
- G9824254
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 19 1/4 in
- Shaft Dia.
- 7/8 in
- Shaft Length
- 4 1/4 in
- Length Less Shaft
- 15 in
- Bolt Circle Dia.
- 7 1/4 in
- Body Dia.
- 9.5 in
- Height
- 11 in
- Frame Size
- 215JM
- Shaft Diameter
- 7/8 in
- Body Diameter
- 9.5 in
- Bolt Circle Diameter
- 7 1/4 in
- Wire Rope Length
- 19 1/4 in
- Length
- 19 1/4 in
Description
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 25.4/12.7, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
