  11. Close-Coupled Pump Motor, 5 HP, 3500 rpm

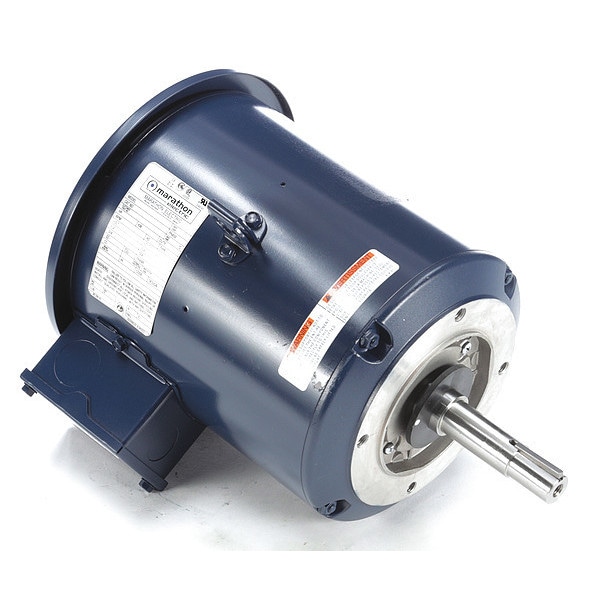

Marathon Close-Coupled Pump Motor, 5 HP, 3500 rpm 182TTDW17008 - main

Close-Coupled Pump Motor, 5 HP, 3500 rpm

  • Mfr # 182TTDW17008

  • Zoro # G8498841

product price: $700.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
HP
5
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
182TTDW17008
Zoro #
G8498841
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
14 15/16 in
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Length Less Shaft
10 11/16 in
Bolt Circle Dia.
6 1/2 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
5
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
208-230/460V AC
Frame
182JMV
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
86.5 %
Full Load Amps
13.6-12.4/6.2
Ins. Class
F
Phase
Three
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
CC Number
CC003A
Motor Bearings
Ball
Motor Frame Material
Steel
Duty
Continuous
Motor Application
Pump
Motor Enclosure Design
Open Dripproof
Inverter Rated
No
Standards
CE Mark, CSA Certified, UL Recognized
Motor Shaft Rotation
CW/CCW
Hz
60/50
Green Certification or Other Recognition
NEMA Premium(R) Rated
Includes
Drip Cover
Motor Mounting Position
Vertical Shaft Down
Service Factor @ 50Hz
1.15
Usable @ 208V
Yes
Weight
95 lb
Conduit Box Location
Exterior
Duty Cycle
Continuous
Usable @ 200V
No
NEMA Design
B
Full Load Amps @ 50Hz
13.6-12.4/6.2
RPM @ 50Hz
3,500
Voltage @ 50Hz
460
HP @ 50Hz
5
No. of Speeds
1
Conduit Box Position
F1

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 6 1/2 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JMV, Hz 60/50, Full Load Amps 13.6-12.4/6.2, Full Load Amps @ 50Hz 13.6-12.4/6.2, HP 5, HP @ 50Hz 5, Includes Drip Cover, Ins. Class F, Inverter Rated No, Length Less Shaft 10 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
