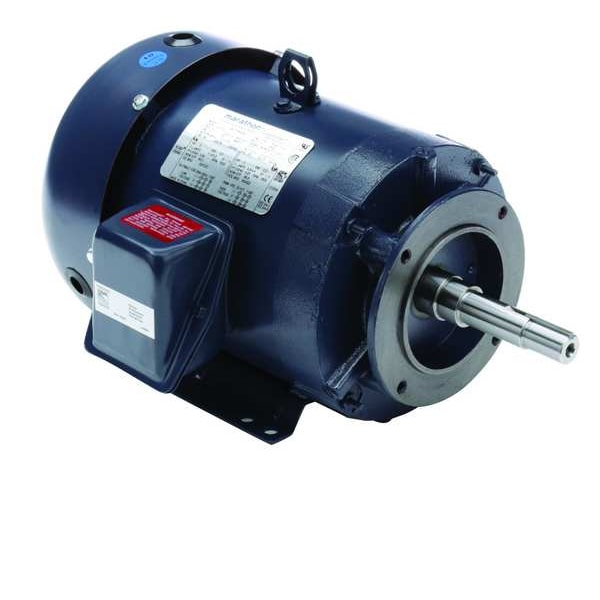

Close-Coupled Pump Motor, 12.0/6.0A, 5 HP

  • Mfr # 184TTFBD6006
  • Zoro # G6418511
product price:
$
1,036.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,525
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTFBD6006
Zoro #
G6418511
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
18 3/8 in
Shaft Dia.
1 1/4 in
Length Less Shaft
14 1/8 in
Shaft Length
4 1/4 in
Height
9 13/16 in
Bolt Circle Dia.
5 7/8 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
1 1/4 in
Frame Size
184JM
Wire Rope Length
18 3/8 in
Length
18 3/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,525
Voltage
230V AC, 460V AC
Frame
184JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Thermal Protection
None
CC Number
CC003A
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Phase
Three
Hz
60 Hz
Ins. Class
F
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Frame Material
Steel
Inverter Rated
Inverter Rated
Motor Bearings
Ball
Motor Efficiency Group
NEMA Premium Efficient
Standards
CE, CSA, UL Listed
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Application
Pump
Nominal Efficiency
88.5 %
Motor Frame Material
Steel
Full Load Amps
12.4/6.2 A
Motor Sub Application
Close-Coupled Pump
Motor Shaft Design
JM Threaded
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Location
Exterior
Weight
90 lb
NEMA Design
A
Inverter Rating
10:1
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Conduit Box Position
F1, F2
Frequency
60 Hz
Shaft Design
Threaded
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Full Load Current @ 60 Hz
12.4/6.2 A
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
NEMA Design Class
A
Insulation Class
F
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal
Application
Pump
Number of Speeds
1
Shaft Thread Type
JM

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 12.4/6.2, Height 9 13/16 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 14 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
