Shop MARATHON

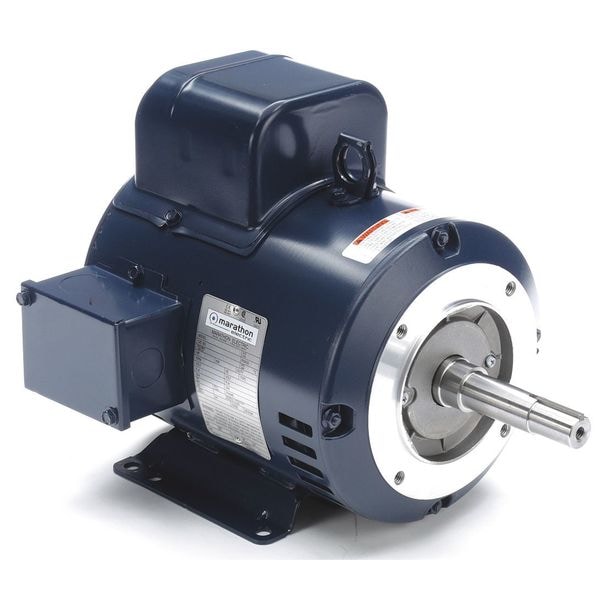

Close-Coupled Pump Motor3 HP, 3500 rpm

  • Mfr # 182TCDW7318

  • Zoro # G5527042

product price:  $843.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
3
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TCDW7318
Zoro #
G5527042
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
15 5/16 in
Length Less Shaft
11 1/16 in
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Height
11 3/16 in
Shaft Diameter
7/8 in
Frame Size
182JM
Wire Rope Length
15 5/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start
HP
3
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
115/230V AC
Frame
182JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Duty
Continuous
Motor Thermal Protection
None
Hz
60 Hz
Full Load Amps
32.0/16.1 A
Motor Application
Pump
Inverter Rated
Not Inverter Rated
Motor Enclosure Design
Open Dripproof
Standards
CE, CSA, UL Recognized
Phase
Single
Motor Bearings
Ball
Motor Sub Application
Close-Coupled Pump
Motor Shaft Design
JM Threaded
Motor Frame Material
Steel
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame Material
Steel
Nominal Efficiency
75.5 %
Motor Efficiency Group
Standard Efficient
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
NEMA Design
L
Motor Mounting Position
Horizontal
No. of Speeds
1
Conduit Box Location
Exterior
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
60 lb
Shaft Type
JM Threaded
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Threaded
Number of Speeds
1
Product Type
Pump Motor
Mounting Position
Horizontal
Application
Pump
Shaft Thread Type
JM
Bearing Type
Ball
Frequency
60 Hz
NEMA Design Class
L
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
32.0/16.1 A
Motor Enclosure Type
Open Drip Proof
Insulation Class
F

Description

Close-Coupled Pump Motor, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JM, Hz 60 Hz, Full Load Amps 32.0/16.1, Height 11 3/16 in, HP 3, Ins. Class F, Inverter Rated No, Length Less Shaft 11 1/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
